Запчасти Case IH 7130 (90.118.48) - LADDER, REAR SERVICE (90) - PLATFORM, CAB, BODYWORK AND DECALS

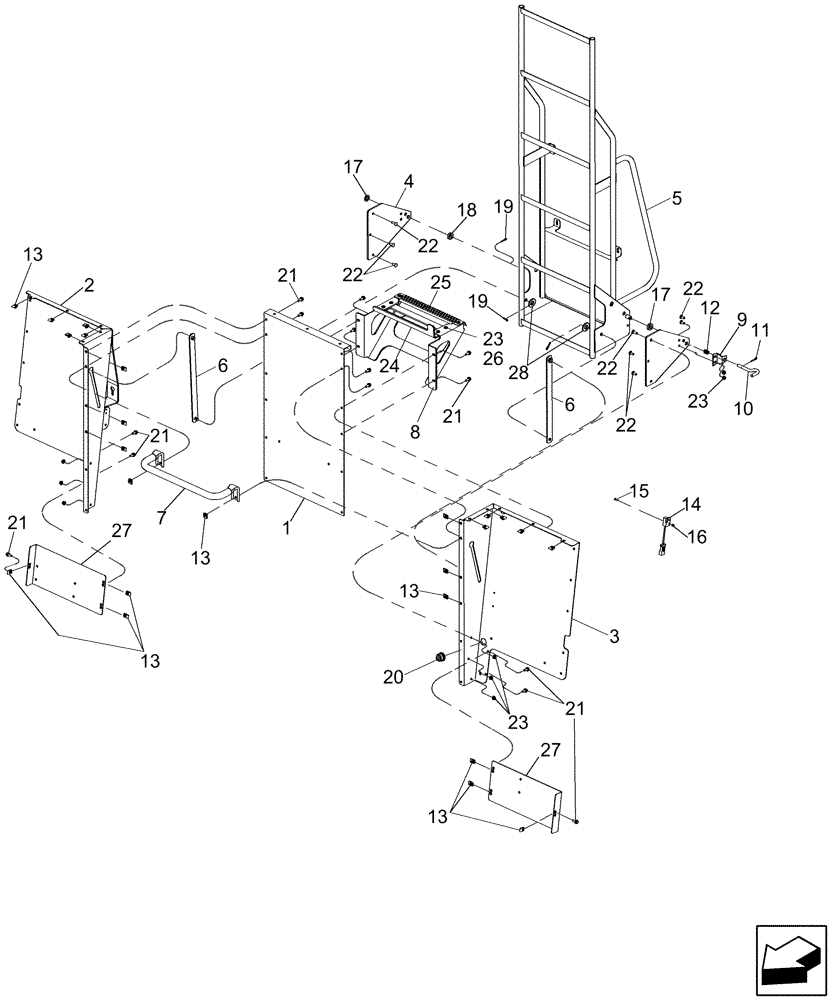

Схема запчастей Case IH 7130 - (90.118.48) - LADDER, REAR SERVICE (90) - PLATFORM, CAB, BODYWORK AND DECALS
16
11
19
2
15
13
13
21
21
25
19
23
12
10
27
22
7
26
20
6
13
4
18
1
21
17
9
3
17
22
21
28
23
22
14
23
6
21
22
22
24
8
13
13
27
5

Артикул

Название

Примечание

Количество

1

87593899

BRACKET

Rear Ladder

1шт.

2

87735830

BRACKET

Rear Ladder, Right Hand

1шт.

3

87735827

BRACKET

Rear Ladder, Left Hand

1шт.

4

84137599

PLATE

Ladder Pivot

2шт.

5

87650811

LADDER

Rear Service

1шт.

6

87599478

SUPPORT ASSY.

Ladder Slip Link

2шт.

7

87593888

TUBE,31.75 mm OD x 495.4, 147 mm L

Tank Hood

1шт.

8

87593885

BRACKET

Ladder

1шт.

9

87599486

BRACKET

Ladder Pin Support

1шт.

10

87755002

PIN

Ladder Support

1шт.

11

38-1813

LOCK PIN,1/8" x 13/16", Slotted

1шт.

12

540815R2

SPRING

1шт.

13

86508354

PUSH-ON NUT,M8 x 1.25

22шт.

14

87592843

SENSOR

Ladder With Reed Switch

1шт.

15

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

1шт.

16

231-14109

LOCK NUT,#10-24, GB

1шт.

17

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

18

1316828C1

SPACER

Left Hand Runner Pivot

2шт.

19

432-1216

COTTER PIN,3/16" x 1"

4шт.

20

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

26шт.

22

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

8шт.

23

86507066

FLANGE NUT,M8 x 1.25, Cl 10

28шт.

24

87593883

BRACKET

Ladder Stop

1шт.

25

87595454

BRACKET

Service Ladder Upper

1шт.

26

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

6шт.

27

87593881

RUNNER

Rear Hood Access

2шт.

28

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 28
