Запчасти Case IH 7130 (90.118.47[02]) - LATCH ASSEMBLY, TRIM PANELS, (EU ONLY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

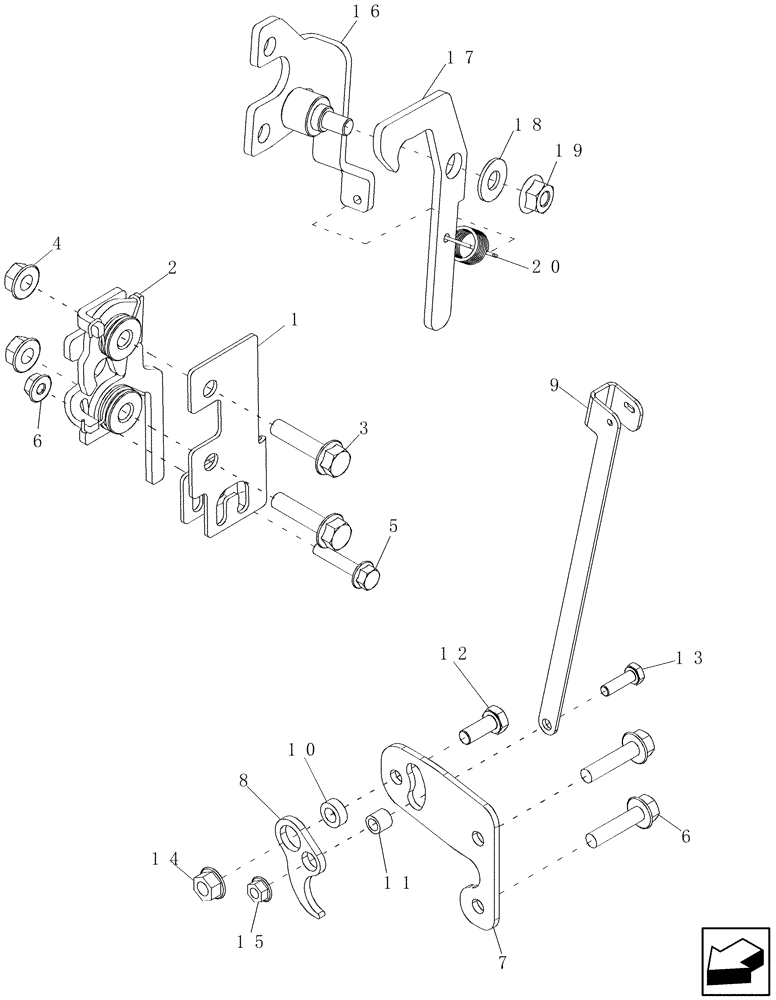

Схема запчастей Case IH 7130 - (90.118.47[02]) - LATCH ASSEMBLY, TRIM PANELS, (EU ONLY) (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
20
13
11
4
5
17
6
16
7
8
3
1
19
6
15
12
14
18
9
10

Артикул

Название

Примечание

Количество

1

87483906

COVER

Primary Trim Panel Latch

3шт.

1

84129431

COVER

Cover, Panel Latch, Euro, Red

3шт.

2

87688487

LATCH ASSY.

Primary, Trim Panel

3шт.

3

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

Trim Panel Latch

8шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Primary Trim Panel Latch

6шт.

5

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

Primary Trim Panel Latch

3шт.

6

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

Primary Trim Panel Latch

3шт.

7

84161978

PLATE

Right Hand Rear Panel, Secondary Latch Mounting

1шт.

8

84161984

LATCH

Right Hand Rear Panel, Secondary

1шт.

9

84161981

STRAP

Right Hand Rear Panel, Secondary Latch

1шт.

10

224089A1

SPACER

Right Hand Rear Panel, Secondary Latch

1шт.

11

87682401

SPACER,6.83mm ID x 10.29mm OD x 9mm L

Right Hand Rear Panel, Secondary Latch

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Right Hand Rear Panel, Secondary Latch

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

Right Hand Rear Panel, Secondary Latch

1шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

Right Hand Rear Panel, Secondary Latch

1шт.

15

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

Right Hand Rear Panel, Secondary Latch

1шт.

16

84162649

BRACKET

Right Hand Latch

1шт.

16

84162647

BRACKET

Left Hand Latch

2шт.

17

84168972

LATCH

Secondary

3шт.

18

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Secondary Latch

3шт.

19

86619801

FLANGE NUT,M8 x 1.25, Cl 8

Secondary Latch

3шт.

20

87283313

SPRING

Spreader Lock Handle, Secondary Latch

3шт.

Выбрано товаров: 22
