Запчасти Case IH 7130 (10.102.05) - OIL DRAIN AND BREATHER SYSTEM (10) - ENGINE

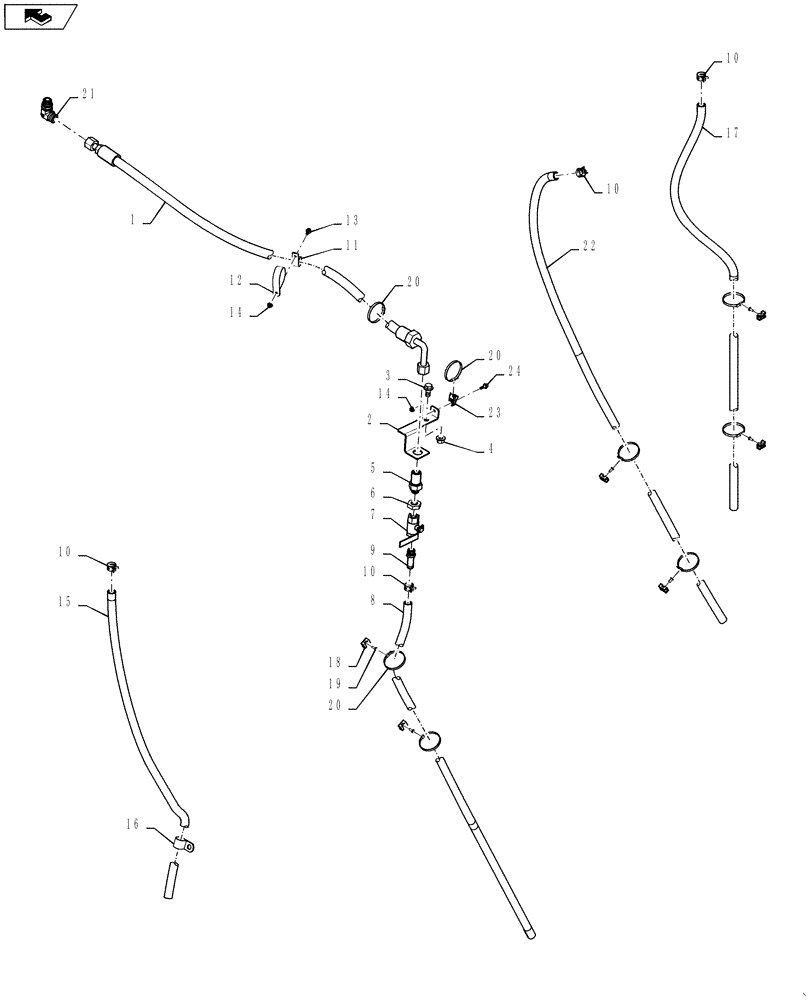

Схема запчастей Case IH 7130 - (10.102.05) - OIL DRAIN AND BREATHER SYSTEM (10) - ENGINE
home
2
7
6
18
17
10
14
21
22
20
20
13
23
10
5
12
14
19
3
8
20
16
10
11
4
15
9
1
24
10

Артикул

Название

Примечание

Количество

1

84311371

HOSE ASSY.,15.88mm ID x 1350mm L, SAE 100R17

5130 Only

1шт.

1

84226280

HOSE ASSY.,15.88mm ID x 1000mm L, SAE 100R4

61/7130 Only

1шт.

2

84364073

BRACKET

1шт.

3

87343550

FLANGE BOLT,Hex, M12 x 25mm

1шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

5

84288936

FITTING,3/4" - 16 ORB x 1" - 14 ORFS

1шт.

6

201-919

BHD LOCK NUT,1" - 14

1шт.

7

84185100

SHUT-OFF VALVE,3/4" - 16 x 3/4" - 16

1шт.

8

1347069C1

FLEXIBLE HOSE,15.75mm ID x 1550mm L

1шт.

9

217-395

FITTING,5/8" Hose Barb x 3/4" - 16 Male ORB

1шт.

10

1954736C1

HOSE CLAMP,#24

4шт.

11

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

12

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

13

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

1шт.

14

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

15

293339A1

RADIATOR HOSE,22.35mm ID x 1100mm L

1шт.

16

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

17

1977293C3

HOSE,15.748mm ID x 1700mm L

1шт.

18

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

9шт.

19

445394

RIVET,Pop, 3/16" x 1/2" OAL

9шт.

20

306132C1

CABLE TIE,14.5" L

CABLE STRAP

11шт.

21

84308852

90 ELBOW

5130 Only

1шт.

21

412156

HOLLOW SCREW

Banjo, Use 2x 220122 On 61/7130

1шт.

22

84364071

FLEXIBLE HOSE,15.75mm ID x 1900mm L

1шт.

23

84340333

BASE PLATE

1шт.

24

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

Выбрано товаров: 26
