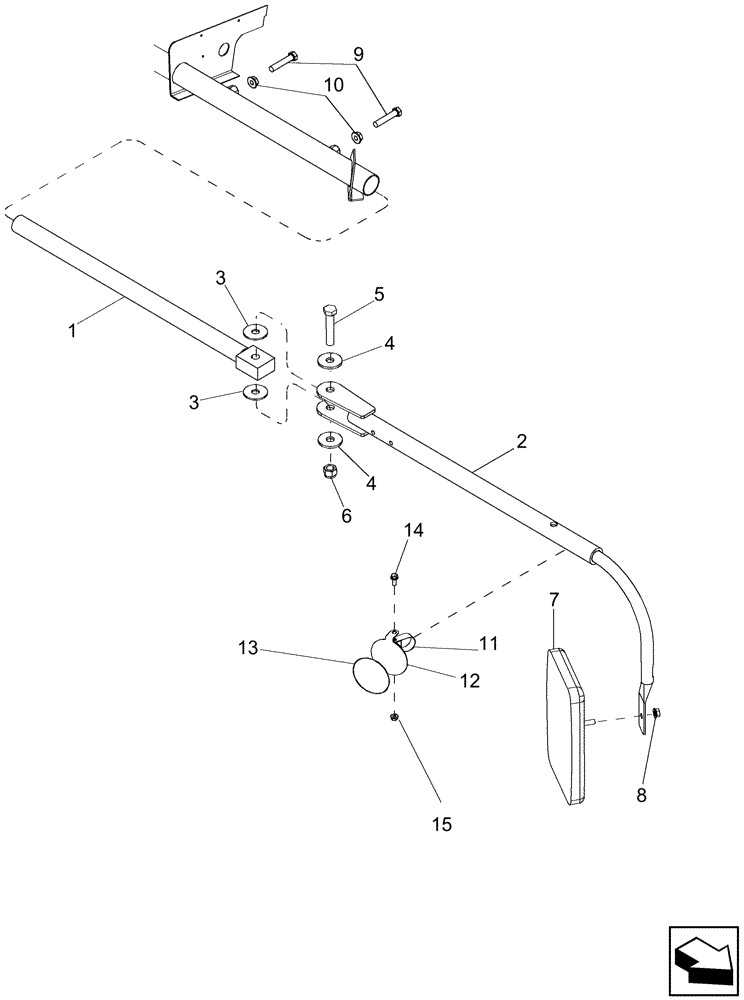

Запчасти Case IH 7130 (90.118.46) - CAB - EXTERIOR REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87617888

SUPPORT ASSY.

Inner Mirror, Bar Weldment

2шт.

2

87715132

BRACKET

Outer Mirror Weldment, Left Hand

1шт.

2

87677607

BRACKET

Outer Mirror Weldment, Right Hand

1шт.

3

87646316

FRICTION WASHER

Mirror Pivot Friction

4шт.

4

495-81030

WASHER,21/32" x 2" x .179"

4шт.

5

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

6

412066

NUT,M16 x 2.0, Cl 8

2шт.

7

1283403C1

MIRROR

2шт.

8

122379A1

FLANGE NUT

2шт.

9

614-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

4шт.

10

825-51412

FLANGE NUT,M12, Flg Ser

4шт.

11

87024765

CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

12

84158925

SUPPORT

1шт.

13

87564375

MIRROR

1шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

15

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.
