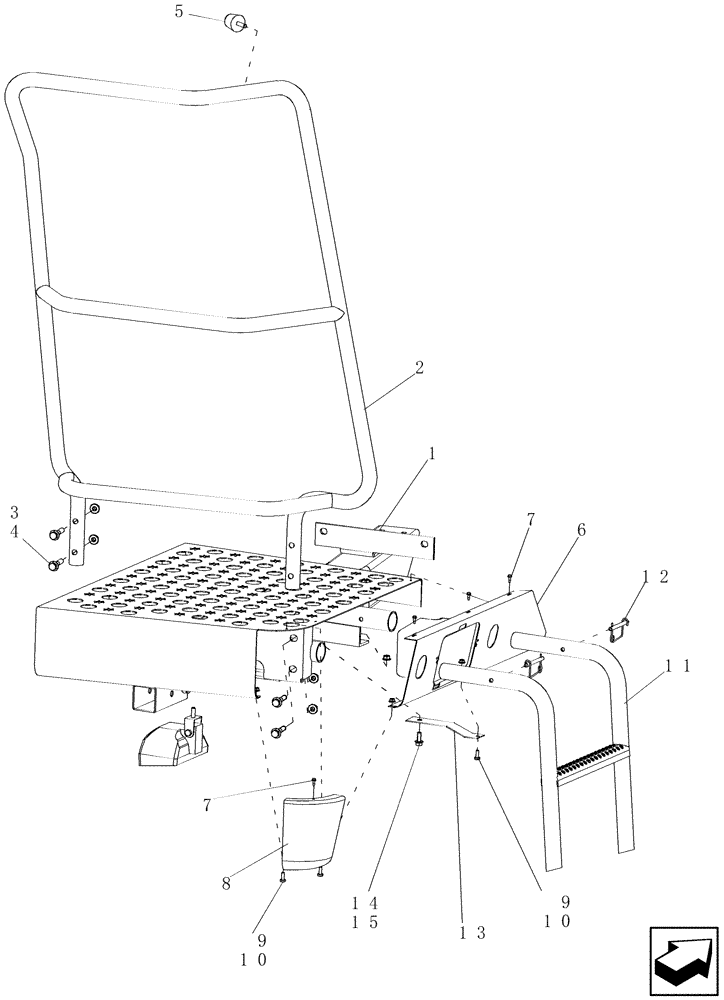

Запчасти Case IH 7130 (90.118.12[02]) - PLATFORM - LADDER, RIGHT HAND, (EU ONLY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84214173

PLATFORM

Right Hand

1шт.

2

84210773

HANDRAIL

Right Hand

1шт.

3

857-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

4шт.

4

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

5

87109195

BUMPER,5/16" - 18, 38mm OD

1шт.

6

84158909

CHANNEL

Platform Trim, Right Hand Front

1шт.

7

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

4шт.

8

118938A1

SUPPORT

Platform Trim, RH Corner

1шт.

9

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

Flange, M6 X 16 CL10.9 ZND

3шт.

10

86619800

FLANGE NUT,M6 x 1, Cl 8

3шт.

11

87389578

LADDER

1шт.

12

1338021C1

PIN,7.94mm OD

Latch Locking

2шт.

13

230752A1

SUPPORT

Right Hand Trim Brace

1шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

15

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.
