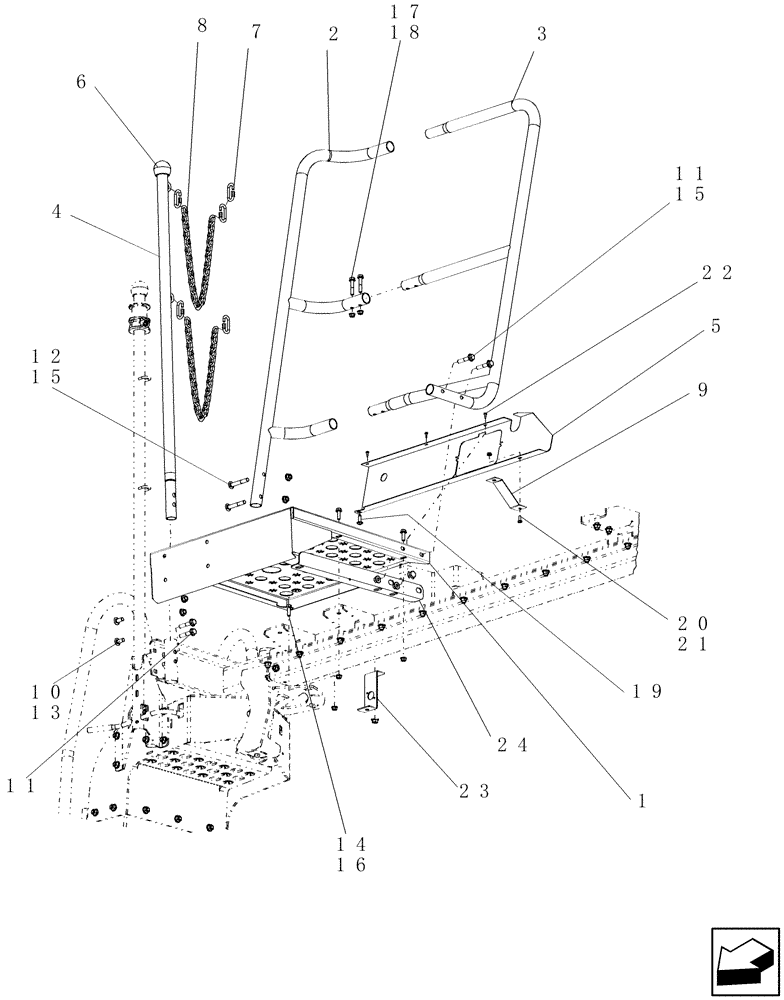

Запчасти Case IH 7130 (90.118.06[01]) - PLATFORM, OPERATORS - LEFT HAND, 24 IN (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84563049

PLATFORM

24 Inch

1шт.

2

87604227

HANDRAIL

Front Outside

1шт.

3

87604223

HANDRAIL

Front Short

1шт.

4

87109394

GRAB RAIL

1шт.

5

84158403

CHANNEL

Left Hand Front

1шт.

6

87109879

KNOB

Ladder Latch

1шт.

7

326376A2

LINK

Ladder Chain

5шт.

8

324546A1

CHAIN,628mm L

Ladder Gate

2шт.

9

230753A1

SUPPORT

Left Hand Trim Brace

1шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

11

857-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

4шт.

12

811-10070

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 70mm, Cl 8.8

2шт.

13

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

15

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

16

857-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 10.9

3шт.

17

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

2шт.

18

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

19

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

1шт.

20

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

1шт.

21

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

22

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

3шт.

23

87392239

BRACKET

Left Hand Aftercut Light

1шт.

24

84158772

BRACKET

Ladder Support

1шт.
