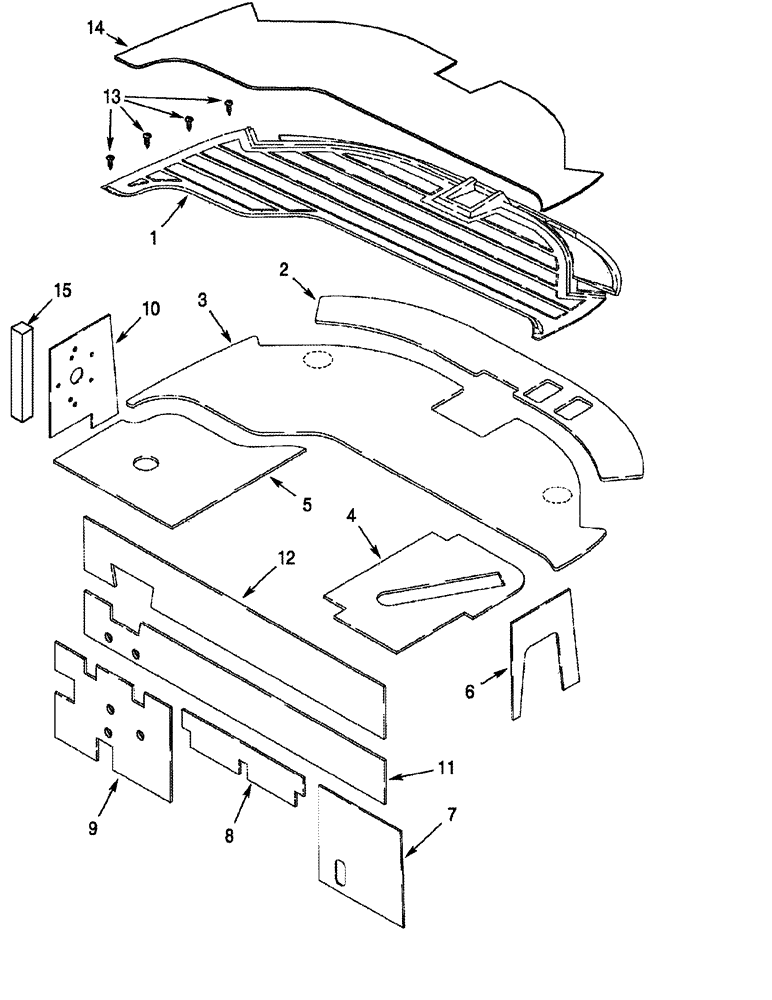

Запчасти Case IH 7130 (90.116.04) - CAB - FLOOR MAT AND INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

331728A1

FLOOR MAT

Cab

1шт.

2

136485A1

MAT

Floor, Front

1шт.

3

136484A1

MAT

Floor

1шт.

4

87388116

FOAM

Floor, Right Hand Rear

1шт.

5

87664101

FOAM INSULATION

Floor, Left Hand Rear

1шт.

6

247007A1

FOAM INSULATION

Lower Right Hand Rear

1шт.

7

125040A2

FOAM INSULATION

Lower Right Hand Rear

1шт.

8

119486A1

FOAM INSULATION

Lower Rear Center

1шт.

9

125041A3

FOAM INSULATION

Lower Left Hand Rear

1шт.

10

87387877

GASKET

Pressurizer Blower

1шт.

11

137944A2

FOAM INSULATION

Center Rear

1шт.

12

137945A1

FOAM INSULATION

Upper Rear

1шт.

13

266-53516

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

4шт.

14

182658A1

PROTECTOR,Cardboard

1шт.

15

97192C1

SEAL

500 mm (19-5/8"), Cut From 1971350C1

2шт.
