Запчасти Case IH 7130 (90.114.13[02]) - TRIM PANELS, REAR, (EU ONLY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

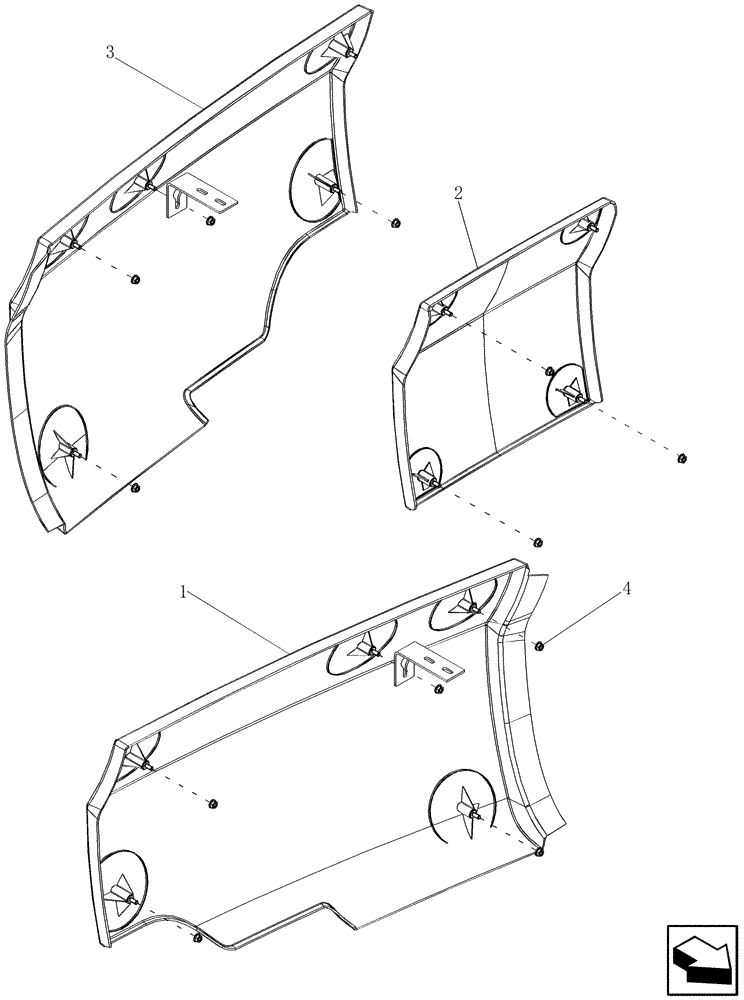

Схема запчастей Case IH 7130 - (90.114.13[02]) - TRIM PANELS, REAR, (EU ONLY) (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
2
1

Артикул

Название

Примечание

Количество

1

87688623

PANEL ASSY.

Tail Light, Left Hand Rear

1шт.

2

87658407

PANEL ASSY.

Rear Service Ladder

1шт.

3

87688625

PANEL ASSY.

Tail Light, Right Hand Rear

1шт.

4

86619801

FLANGE NUT,M8 x 1.25, Cl 8

14шт.
