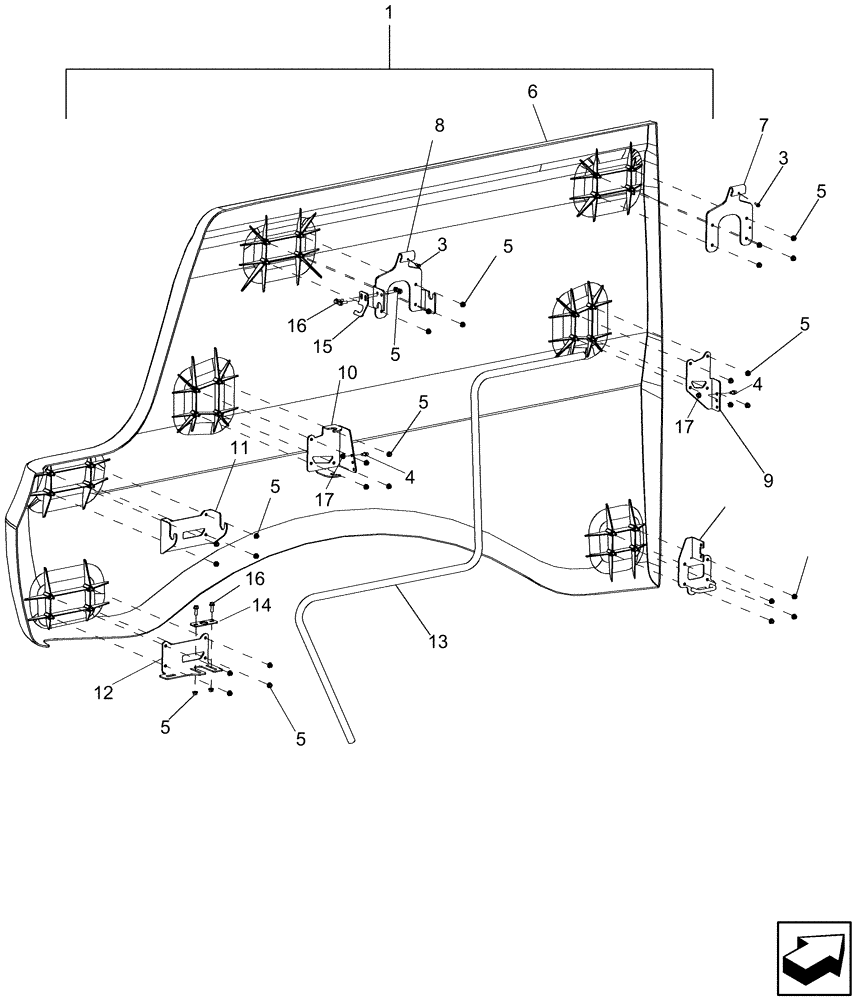

Запчасти Case IH 7130 (90.114.12) - TRIM PANEL, LEFT HAND REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NSS

NOT SOLD SEPARAT

PANEL ASSEMBLY, Incl 5 Qty of 28 and 6 - 16

1шт.

2

87649465

BRACKET

Latch

1шт.

3

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

2шт.

4

86634307

STUD

2шт.

5

86619801

FLANGE NUT,M8 x 1.25, Cl 8

32шт.

6

87614445

PANEL,Plastic, LH Rear, Red

Left Hand Rear

1шт.

7

87654736

BRACKET

Hinge, Left Hand

1шт.

8

87470677

BRACKET

Hinge, Left Hand

1шт.

9

87661469

BRACKET

Gas Spring

1шт.

10

87470680

BRACKET

Gas Spring Mount

1шт.

11

87470683

BRACKET

Rear Door, Left Hand

1шт.

12

87649312

BRACKET

Rear Door, Left Hand

1шт.

13

87654332

BRACKET

Left Hand Rear Door, Stiffener

1шт.

14

87649314

BRACKET

Left Hand Rear Door, Stiffener Adjust

1шт.

15

87661473

BRACKET

Tube Retainer

1шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.
