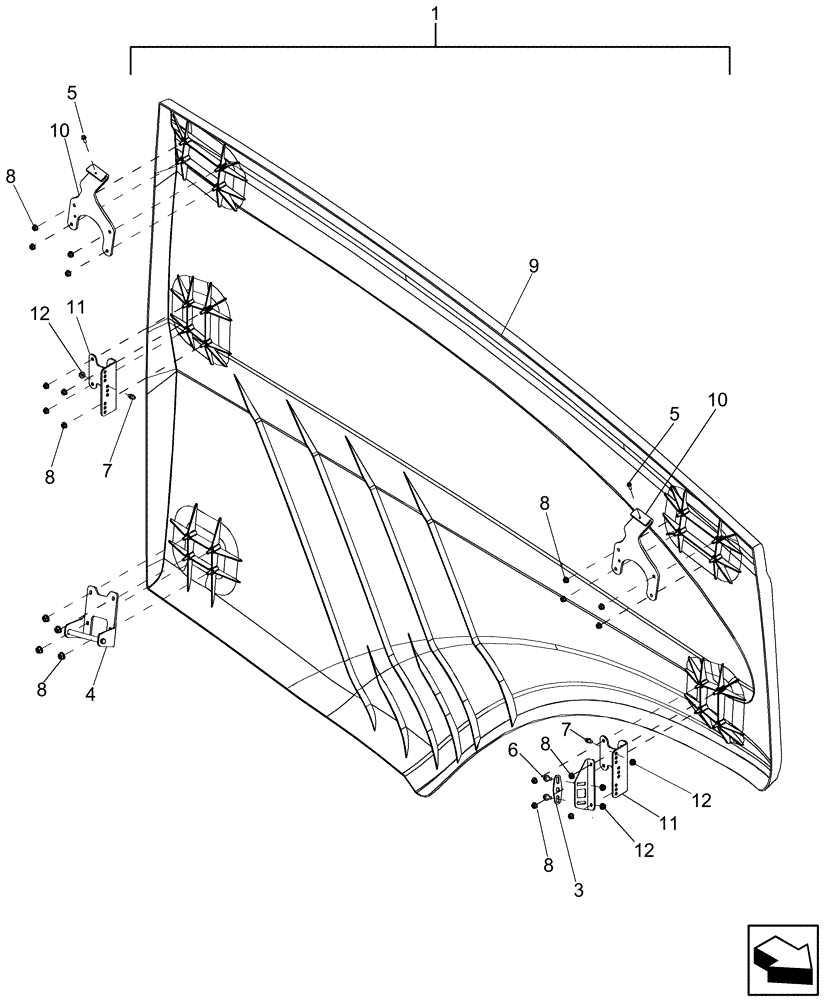

Запчасти Case IH 7130 (90.114.11) - TRIM PANEL, LEFT HAND FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NSS

NOT SOLD SEPARAT

PANEL ASSEMBLY, Incl 8 Qty of 14 and 9 - 11

1шт.

2

87699517

BRACKET

Lock

1шт.

3

87676999

BRACKET

1шт.

4

87649465

BRACKET

Latch

1шт.

5

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

2шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

7

86634307

STUD

2шт.

8

86619801

FLANGE NUT,M8 x 1.25, Cl 8

20шт.

9

84322724

TRIM PANEL

Front, Left Hand panel includes brackets 2,10, and 11 and connecting hardware

1шт.

10

87633973

BRACKET

Hinge

2шт.

11

87661467

BRACKET

Gas Spring

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.
