Запчасти Case IH 7130 (90.108.05[02]) - DECALS-WARNING/CAUTION/DANGER/INFORMATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

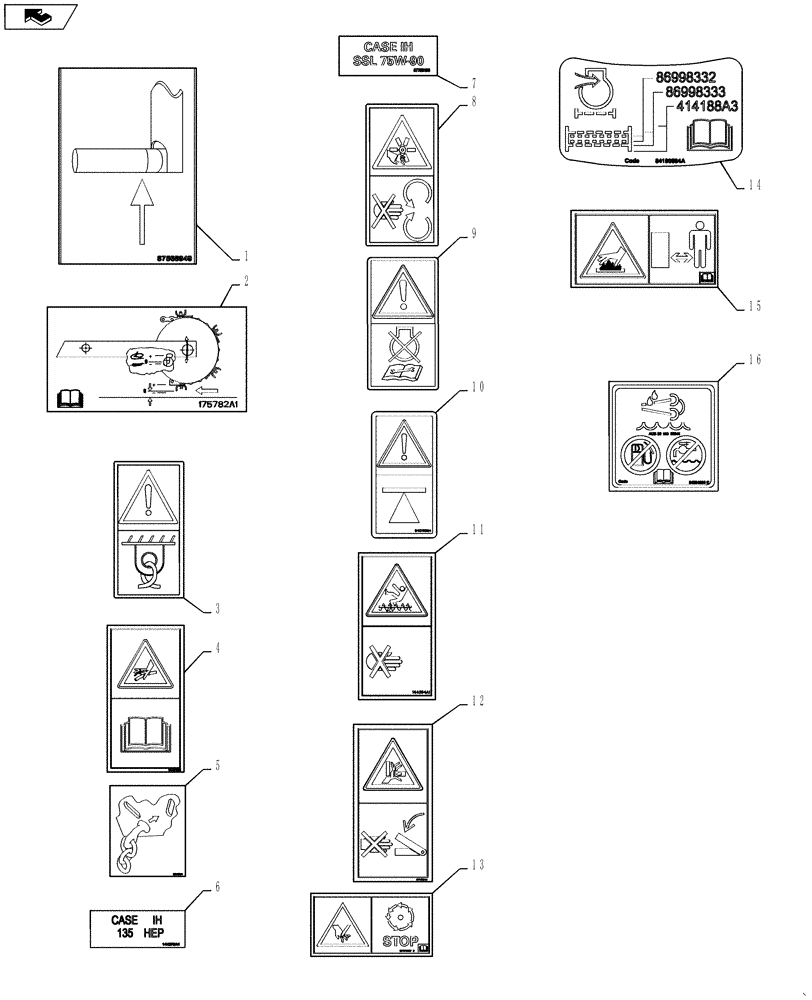

Схема запчастей Case IH 7130 - (90.108.05[02]) - DECALS-WARNING/CAUTION/DANGER/INFORMATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
7
5
home
16
14
9
10
3
8
12
1
13
15
4
11
2

Артикул

Название

Примечание

Количество

1

87568949

DECAL

Ladder Unlatch- Lower Black

1шт.

2

175782A1

DECAL

Feeder Drum Adjust

1шт.

3

84100296

DECAL

Tie Down Point

2шт.

4

344946A1

WARNING DECAL

Pressurized Vessel (Non Word)

1шт.

5

283528A1

DECAL

T-Hook, For Rail Transport

6шт.

6

144378A1

DECAL

Case IH 135 HEP

1шт.

7

87709106

DECAL

Case IH SSL 75W-90

1шт.

8

332511A1

DECAL

Fan hazard (EU Only)

1шт.

9

84004733

DECAL

Important

1шт.

10

84078384

DECAL

4шт.

11

144384A1

DECAL

Do not Enter Grain Tank (Eu Only)

3шт.

12

87413244

DECAL

Pinch Point

2шт.

13

87479097

DECAL

Rotating Parts

3шт.

14

84190684

DECAL

Filter Element

1шт.

15

87415865

WARNING DECAL

Hot Surface (EU Only)

1шт.

16

84284896

DECAL,DEF TANK identification label

Do Not Add Fuel/Water- On Hydraulic Tank

1шт.

Выбрано товаров: 16
