Запчасти Case IH 7130 (90.105.08) - SUPPORT AND MOUNTING, RIGHT HAND REAR DOOR SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

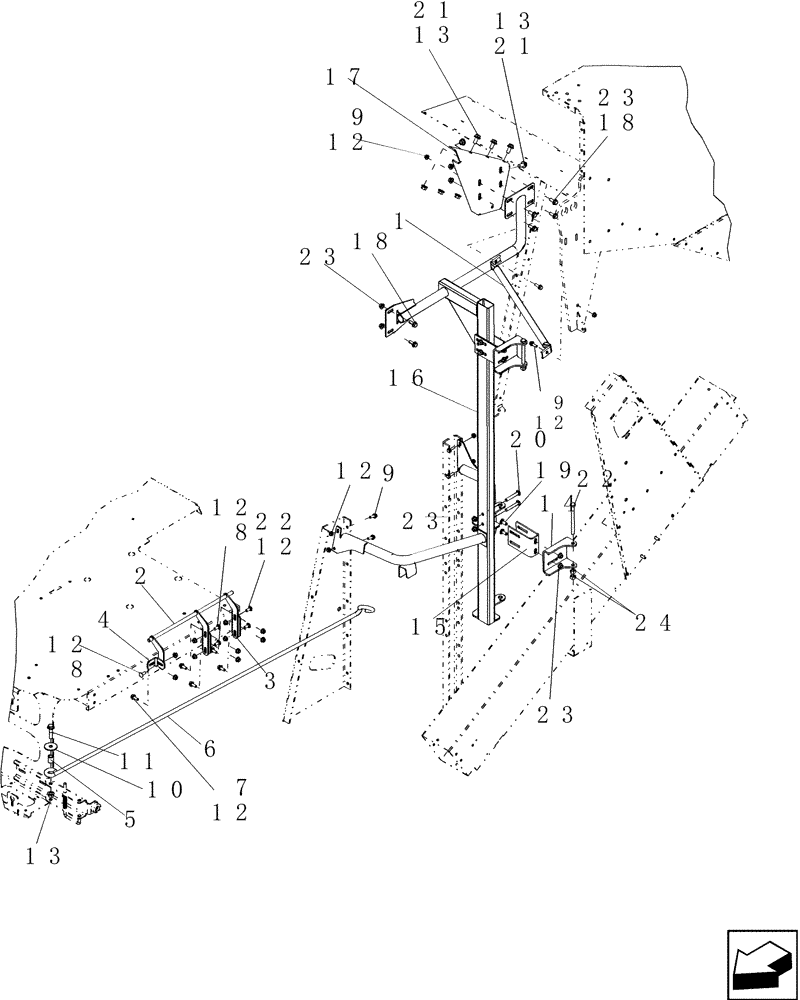

Схема запчастей Case IH 7130 - (90.105.08) - SUPPORT AND MOUNTING, RIGHT HAND REAR DOOR SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS
18
24
8
16
17
20
7
12
13
12
12
8
15
8
12
9
18
23
14
12
13
23
11
22
1
8
4
6
13
21
23
2
9
19
3
5
9
23
22
7
10
21
12
12

Артикул

Название

Примечание

Количество

1

87680949

SUPPORT

1шт.

2

87709512

BRACKET

Right Hand Rear Panel

1шт.

3

87709508

BRACKET

Right Hand Rear Panel, Latch Mounting

2шт.

4

87709506

BRACKET

Right Hand Rear Panel, Latch Mounting

1шт.

5

224368A1

SPACER,0.546" ID x 0.840" OD x 0.984" OAL

Door Keeper Rod

1шт.

6

87654944

ROD

Right Hand Rear Door Keeper

1шт.

7

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

5шт.

8

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

3шт.

9

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

10

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

M12 x 50 x 5

1шт.

11

87670764

BOLT,M12 x 61.8mm, Cl 10.9

1шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

16шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

14

87703740

BRACKET

Right Hand Rear Door Hinge

2шт.

15

87629500

BRACKET

Right Hand Rear Hinge

2шт.

16

84127288

BRACKET

Right Hand Rear Trim Panel

1шт.

17

87756424

BRACKET

Hinge Support, Front

1шт.

18

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

19

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

20

87752069

CARRIAGE BOLT,Sht Sq Nk, M10 x 70mm, Cl 10.9

4шт.

21

87343550

FLANGE BOLT,Hex, M12 x 25mm

5шт.

22

328048

BOLT,M12 x 1.75 x 147.68mm OAL, Cl 8.8

2шт.

23

86050279

FLANGE NUT,M10 x 1.5, Cl 10

14шт.

24

9706685

NUT,M12 x 1.75, Cl 8

4шт.

Выбрано товаров: 24
