Запчасти Case IH 7130 (90.105.08[02]) - SUPPORT AND MOUNTING, LEFT HAND PANEL HINGE MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

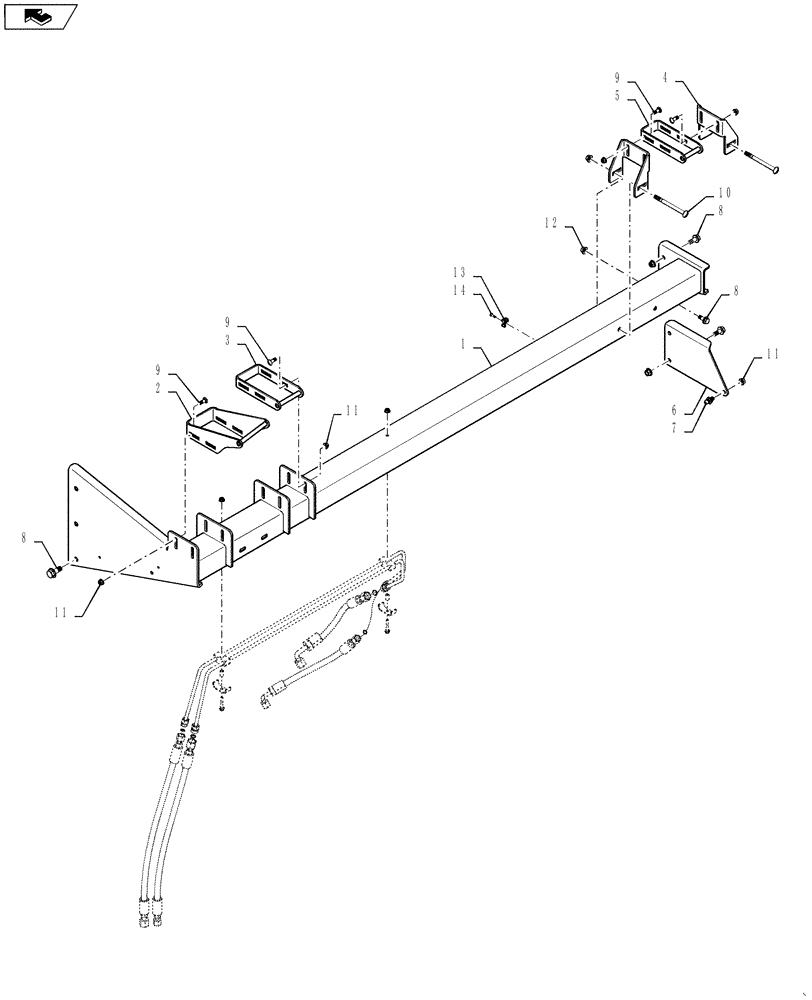

Схема запчастей Case IH 7130 - (90.105.08[02]) - SUPPORT AND MOUNTING, LEFT HAND PANEL HINGE MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
11
3
1
12
8
7
9
5
2
13
6
8
14
4
8
10
home
11
11
9

Артикул

Название

Примечание

Количество

1

84155644

CHANNEL

1шт.

2

84155744

HINGE

1шт.

3

84155739

HINGE

1шт.

4

84156192

PANEL SUPPORT

2шт.

5

84155736

FIXED HINGE

1шт.

6

84156195

BRACKET, SUPPORTING

1шт.

7

86634307

STUD

1шт.

8

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

8шт.

9

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

12шт.

10

84188427

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 130mm, Cl 10.9

2шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

13шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

7шт.

13

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

7шт.

14

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

7шт.

Выбрано товаров: 14
