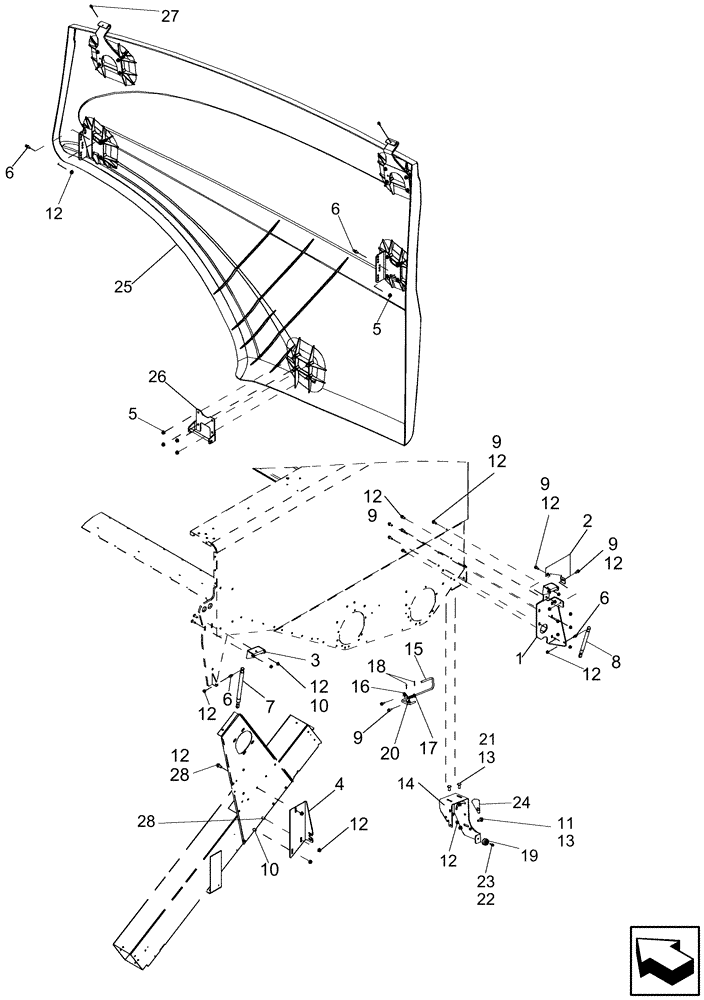

Запчасти Case IH 7130 (90.105.02[01]) - DOOR SHIELD - RIGHT HAND FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87663834

BRACKET

Hinge, Right Hand Front

1шт.

2

87666897

PLATE

Cover, Right Hand

1шт.

3

87624895

BRACKET

Rear Hinge

1шт.

4

87484220

BRACKET

Right Hand Front Latch

1шт.

5

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

6

86634307

STUD

4шт.

7

87757843

GAS STRUT

700N

1шт.

8

87688426

GAS STRUT

250N

1шт.

9

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

10

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

11

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

19шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

14

87680361

BRACKET

Transport Lock

1шт.

15

87470711

ROD

Transport Lock Latch, Right Hand Front

1шт.

16

87676999

BRACKET

1шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

18

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

19

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

Recessed With Washer Insert

1шт.

20

192216A1

SPRING

Safety Stand Rod

1шт.

21

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

22

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

23

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

24

87479418

DECAL

Trim Panel Lock, Right Hand

1шт.

25

87751017

PANEL ASSY.

Front Right Hand

1шт.

26

87649465

BRACKET

Latch

1шт.

27

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

2шт.

28

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.
