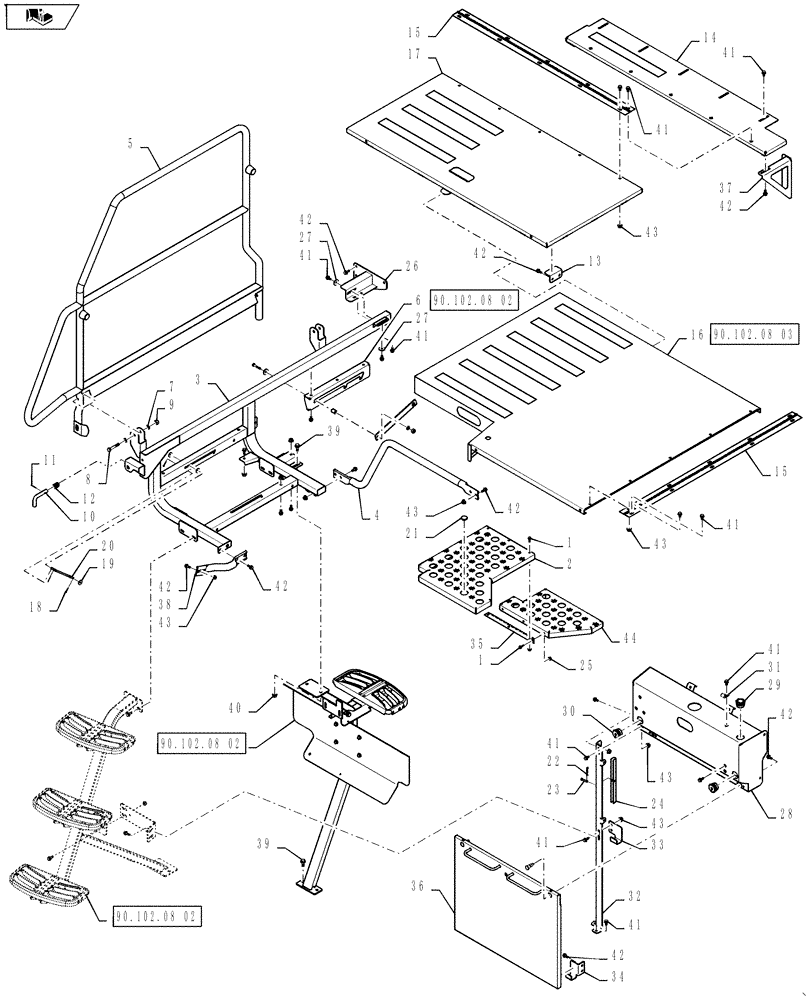

Запчасти Case IH 7130 (90.102.08) - ENGINE COVERS 5/6/7130 T2 AND T4 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

2

84277125

PLATFORM ASSY.

Rear

1шт.

3

84351091

SUPPORT

1шт.

4

84348616

HANDRAIL

1шт.

5

84528551

HANDRAIL

Does Not Include Bumpers 87109195

1шт.

87109195

BUMPER,5/16" - 18, 38mm OD

2шт.

6

84291514

ANGLE

1шт.

7

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

8

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

10

86611330

PIN,16.56mm OD

1шт.

11

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

12шт.

12

26538

SPRING

1шт.

13

84258220

ANGLE BAR

1шт.

14

84277131

SHEET

Rotor Door Mount

1шт.

15

442774A2

HINGE

Engine Cover Door

2шт.

16

OC

Order Components, See Page 90.102.08(03)

1шт.

17

84277134

COVER

Rotor Top

1шт.

18

130003

COTTER PIN,3mm OD x 30mm OAL

3шт.

19

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

3шт.

20

84469063

ROD

Platform

1шт.

21

158188

PLUG,19mm Hole, 28.6mm OD

1шт.

22

473443R1

COTTER PIN

1шт.

23

439-1420

HEADED PIN,1/4" x 1 1/4"

1шт.

24

448354A1

BRACKET

Air Cylinder Lockout

1шт.

25

86050300

FLANGE NUT,M6 x 1.0, Cl 10

6шт.

26

84351096

SUPPORT

1шт.

27

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

2шт.

28

84534138

SUPPORT

Deaeration Tank

1шт.

29

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

1шт.

30

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

2шт.

31

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

32

84522425

ANGLE

1шт.

33

84295596

BRACKET

LH

1шт.

34

84295598

BRACKET

RH

1шт.

35

84281342

HINGE

Door, Separator Housing

1шт.

36

84295593

COVER

Fan Access

1шт.

86998687

STUD

Ball

1шт.

84375587

LATCH

Latch, EU Only

1шт.

37

84283597

SUPPORT

1шт.

38

84353682

TUBE

1шт.

39

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

40

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

41

87681207

BOLT,M8 x 24.1mm, Cl 10.9

36шт.

42

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

32шт.

43

86507066

FLANGE NUT,M8 x 1.25, Cl 10

30шт.

44

84277123

PLATFORM

1шт.
