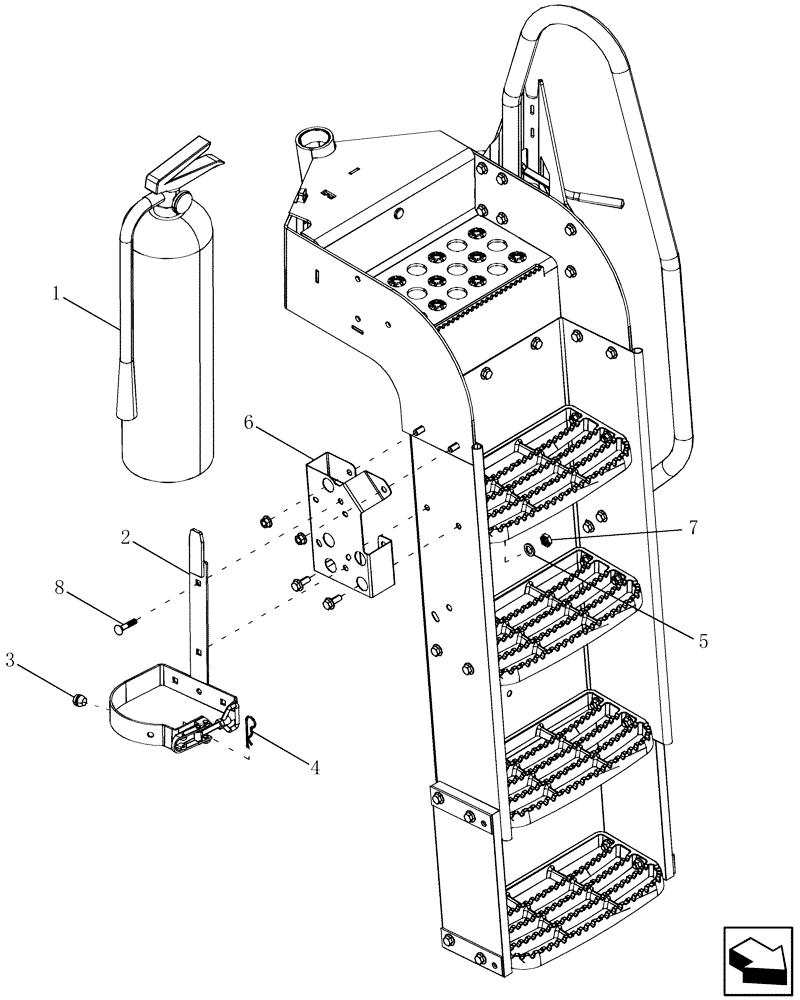

Запчасти Case IH 7130 (05.102.01[02]) - FIRE EXTINGUISHER (EU ONLY) (05) - SERVICE & MAINTENANCE

1

84440547

FIRE EXTINGUISHER

Includes Ref 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Serviced Only With Fire Extinguisher, Ref 1

1шт.

3

336455

PLUG

Bumper Rubber

3шт.

4

740591

SPRING,M10 x 67

1шт.

5

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

3шт.

6

84213131

BRACKET

Ladder Fire Extinguisher Mount

1шт.

7

9706690

NUT,M8 x 1.25, Cl 8

3шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.
