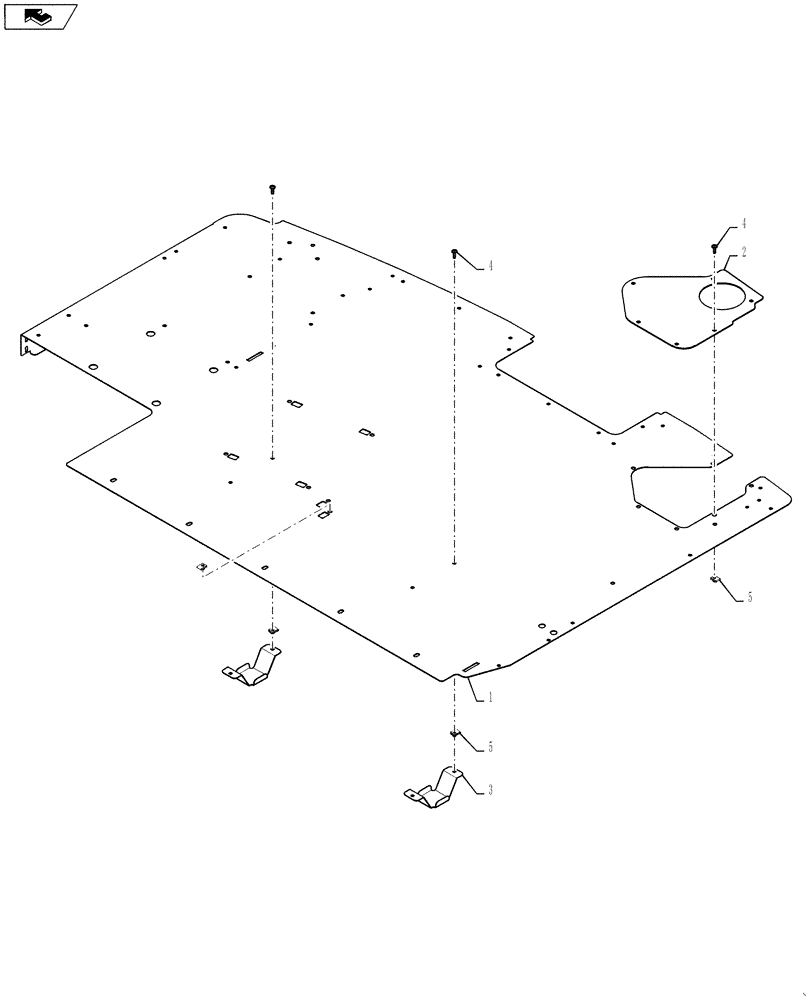

Запчасти Case IH 7130 (90.100.01[02]) - HOOD ASSY REAR, ENGINE SERVICE DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84297006

SHEET ASSY.

Engine Service Deck

1шт.

2

84328397

COVER

Fuel Tank Spout

1шт.

3

87599485

BRACKET

Fuel Tank Hold Down

1шт.

4

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

10шт.

5

86508354

PUSH-ON NUT,M8 x 1.25

16шт.
