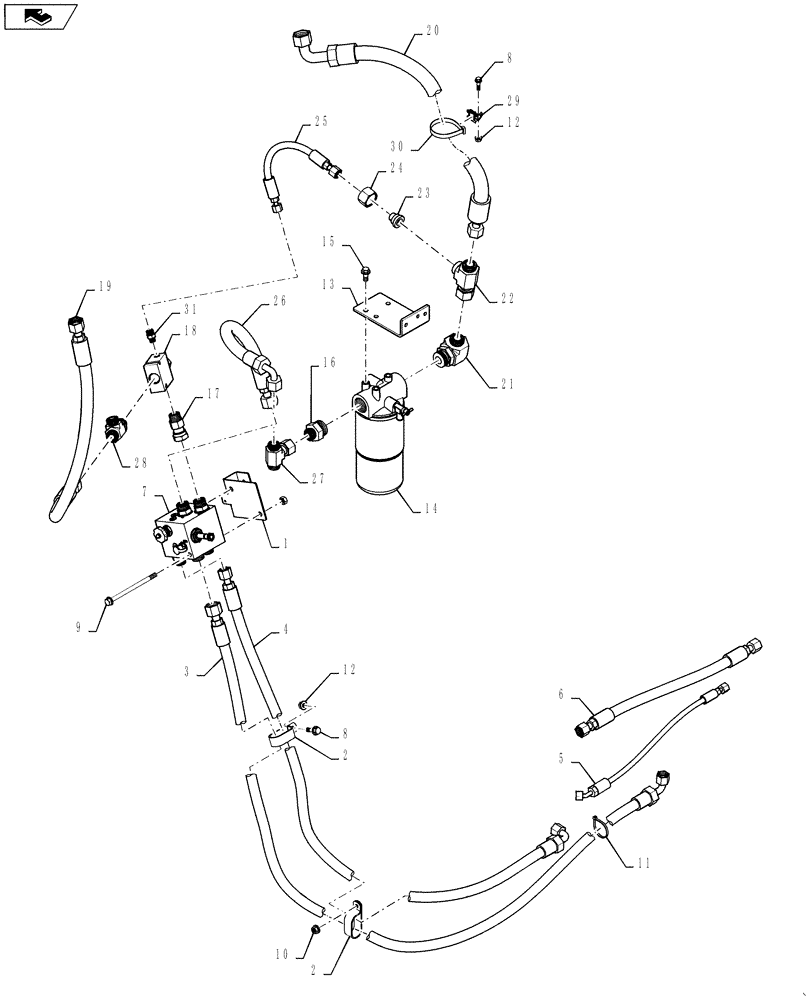

Запчасти Case IH 7130 (88.490.11[01]) - HYDRAULICS, SPREADER (88) - ACCESSORIES

1

84197992

BRACKET

1шт.

2

470375C1

CLAMP,1", Insul, 3/8" Bolt

2шт.

3

87631078

HOSE ASSY.

1шт.

4

87709638

HOSE ASSY.

1шт.

5

84130573

HOSE ASSY.

1шт.

6

87709636

HOSE ASSY.

1шт.

7

87619387

VALVE

1шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

9

87681208

BOLT,Hex, M8 X 130, Class 10.9

2шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

11

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

84159358

BRACKET

1шт.

14

87689482

FILTER ASSY

1шт.

15

87021006

BOLT,M10 x 26.4mm, Cl 10.9

3шт.

16

87350546

HYD CONNECTOR,1 3/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

17

87485024

HYD CONNECTOR

1шт.

18

84280236

VALVE

1шт.

19

84259085

HOSE ASSY.,19.05mm ID x 875mm L, SAE 100R17

1шт.

20

84259104

HOSE ASSY.,25.4mm ID x 960mm L, SAE 100R4

1шт.

21

86511661

90 ELBOW,Adj, 1 7/16"-12 ORFS x 1 5/8"-12" ORB

1шт.

22

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

1шт.

23

87016874

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

1шт.

24

86541146

TUBE NUT,1-7/16"-12 x 27.5mm L

1шт.

25

84375783

HOSE ASSY.

1шт.

26

84347764

HOSE ASSY.,19.05mm ID x 655mm L, SAE 100R17

1шт.

27

201-419

TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br

1шт.

28

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

29

84360210

BASE

1шт.

30

84266050

CABLE TIE,384mm L, Polyamide

1шт.

31

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.
