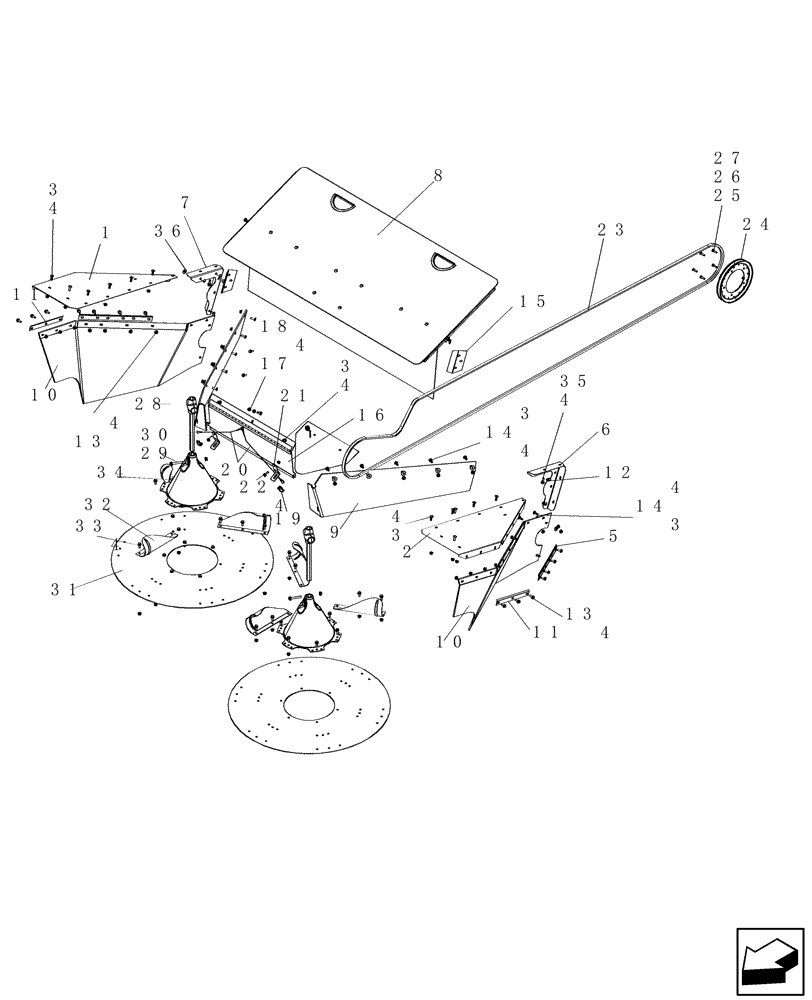

Запчасти Case IH 7130 (88.490.10) - STRAW/CHAFF SPREADER (88) - ACCESSORIES

1

87478154

BRACKET

Straw Spreader Shield, Left Hand

1шт.

2

87478152

BRACKET

Straw Spreader Shield, Right Hand

1шт.

3

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

31шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

75шт.

5

87652036

BRACKET

Straw Spreader Shield

2шт.

6

87686615

BRACKET

Spreader Seals, Right Hand

1шт.

7

87686616

BRACKET

Spreader Seals, Left Hand

1шт.

8

NSS

NOT SOLD SEPARAT

DRIBBLE PAN ASSEMBLY, Chaff and Straw Spreader, See Page 88.230.17

1шт.

9

87732802

SEAL

Spreader

2шт.

10

87688165

SEAL

Spreader

2шт.

11

87652033

BRACKET

Straw Spreader Shield

2шт.

12

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

4шт.

13

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

32шт.

14

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

18шт.

15

87701981

PLATE ASSY.

Spreader Seal

2шт.

16

84203151

DEFLECTOR

Spreader

1шт.

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

connecting hardware for deflector plate

4шт.

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

connecting hardware for deflector plate

4шт.

17

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

2шт.

18

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

19

A33497

LINCH PIN,4.76mm OD Pin

2шт.

20

427336A1

CABLE,457.2mm L

2шт.

21

87705426

DEFLECTOR

Spreader

2шт.

22

857-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 10.9

2шт.

23

84163222

V-BELT,6367.00 mm L

Spreader Drive

1шт.

24

87735652

PULLEY

Straw Spreader Drive

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

26

492-11031

LOCK WASHER,5/16"

5шт.

27

425-105

NUT,5/16"-18, G5

5шт.

28

87648715

SHAFT

Detent, Straw Spreader

2шт.

29

87656139

BOLT,M10 x 70.4mm, Cl 10.9

2шт.

30

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

31

140189A1

DISC

Straw Spreader

2шт.

32

87726623

BAT

Curved, Spreader, Left Hand

3шт.

32

87726624

BAT

Curved, Spreader, Right Hand

3шт.

33

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

34

188218C6

CONE,Spreader Support

Straw Spreader Support

2шт.

35

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

36

131-440

PUSH-ON NUT

2шт.
