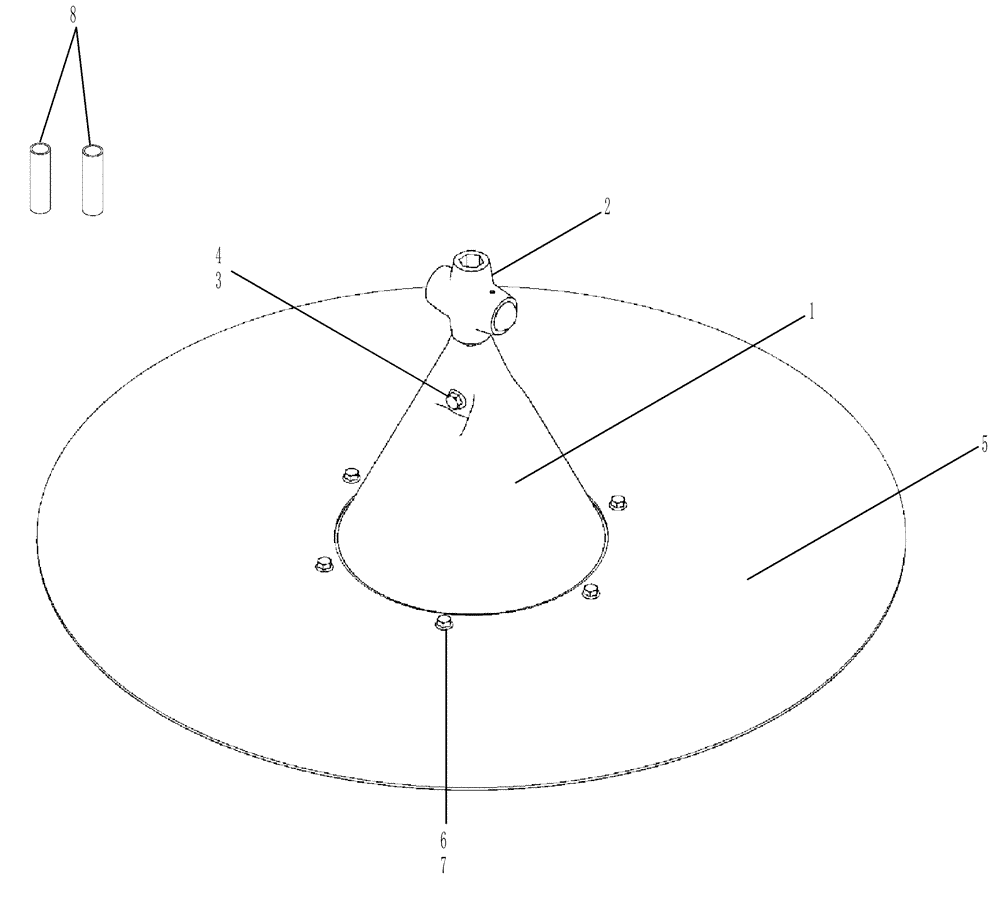

Запчасти Case IH 7130 (88.490.09) - DIA, SMOOTH SPREADER DISC ASSEMBLY (88) - ACCESSORIES

84303526

REPAIR KIT

Complete, Includes Ref 1-8

1шт.

1

188218C6

CONE,Spreader Support

Spreader Support

1шт.

2

NSS

NOT SOLD SEPARAT

Dentent Assembly Straw Spreader

1шт.

3

87656139

BOLT,M10 x 70.4mm, Cl 10.9

Flange M10x60

1шт.

4

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

Flange M10X1.5

1шт.

5

84303517

DISC

Smooth Disc

1шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

8

87751662

PLASTIC-RUBBER TUBE,60.32 mm OD x 212 mm L

Tube Rubber / Plastic

2шт.
