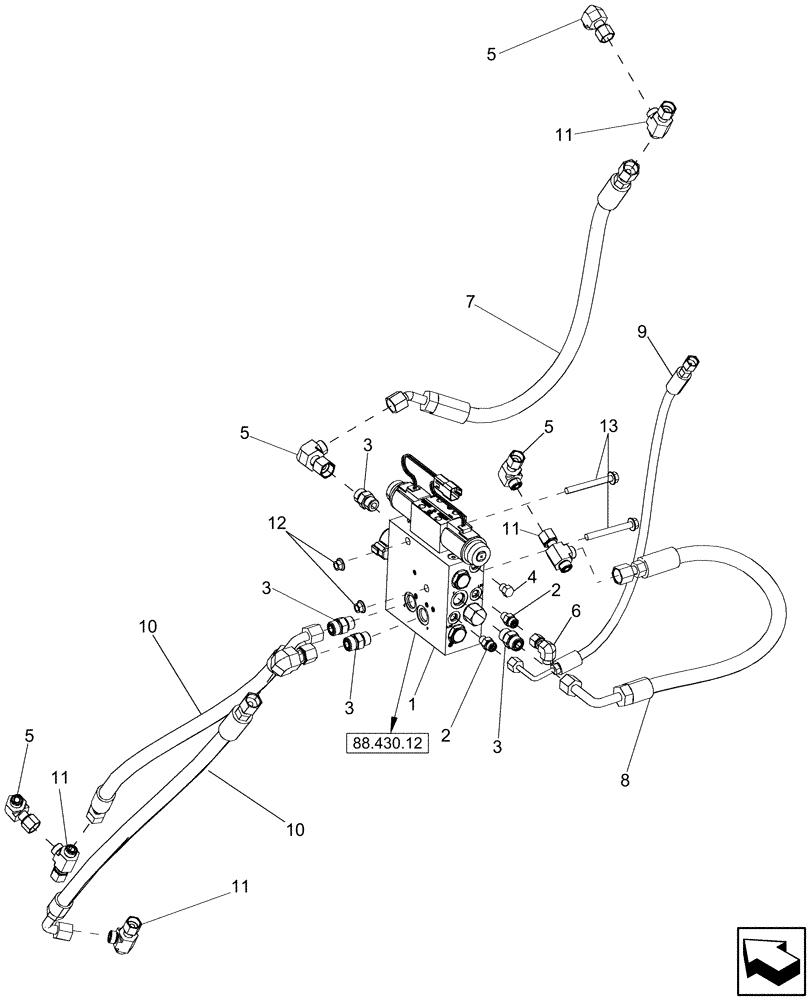

Запчасти Case IH 7130 (88.430.05) - AUTO GUIDANCE-READY, HYDRAULICS (88) - ACCESSORIES

1

87673657

VALVE

Auto Guidance With Steer Enable

1шт.

2

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

2шт.

3

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

4шт.

4

9672438

PLUG,7/16" - 20 ORB

1шт.

5

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

4шт.

6

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

1шт.

7

84347763

HOSE ASSY.,12.7mm ID x 715mm L, SAE 100R17

Auto Guidance Inlet

1шт.

8

84156348

HOSE ASSY.,12.7mm ID x 680mm L, SAE 100R17

Auto Guidance Tank

1шт.

9

84156349

HOSE ASSY.,6.35mm ID x 1025mm L, SAE 100R17

Auto Guidance LS2

1шт.

10

87750011

HOSE ASSY.

Auto Guidance Work Port

2шт.

11

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

4шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

13

87695408

BOLT,M10 x 1.5 x 100.4mm OAL, Cl 10.9

2шт.

14

84260470

HOSE ASSY.,6.35mm ID x 450mm L, SAE 100R17

Steering H.P. Signal. (Not Shown)

1шт.
