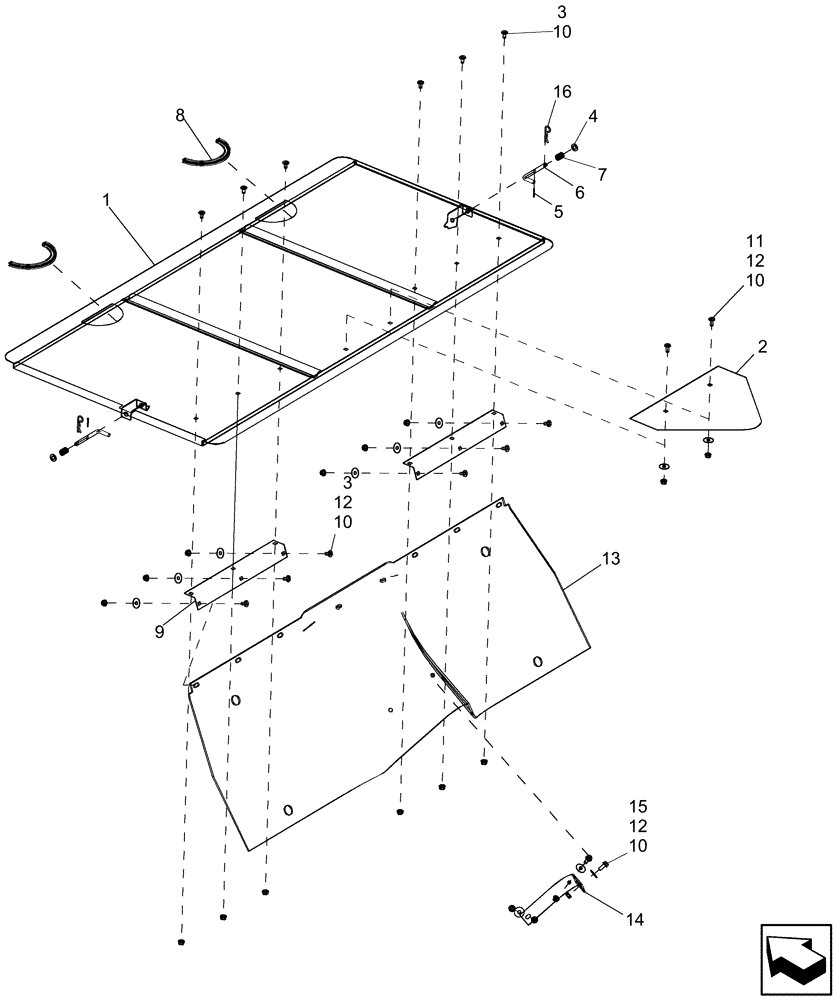

Запчасти Case IH 7130 (88.230.17) - DRIBBLE PAN ASSEMBLY, STRAW SPREADER (88) - ACCESSORIES

1

87732720

PAN ASSY.

Residue

1шт.

2

87657179

DEFLECTOR

Tailgate Chaff Spreader

1шт.

3

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

12шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

5

432-612

COTTER PIN,3/32" x 3/4"

2шт.

6

186736C3

ROD

Tailgate Lock

2шт.

7

540815R2

SPRING

Compression Ratchet Hub Pawl

2шт.

8

135370A1

PROTECTION STRIP

2шт.

9

87685897

BRACKET

Dribble Sheet Shield

2шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

17шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

87013865

WASHER,9mm ID x 28mm OD x 1.6mm Thk

11шт.

13

87684740

SEAL

Cleaning Shoe Door

1шт.

14

87300945

STRAP

1шт.

15

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

16

586591R1

COTTER PIN

2шт.
