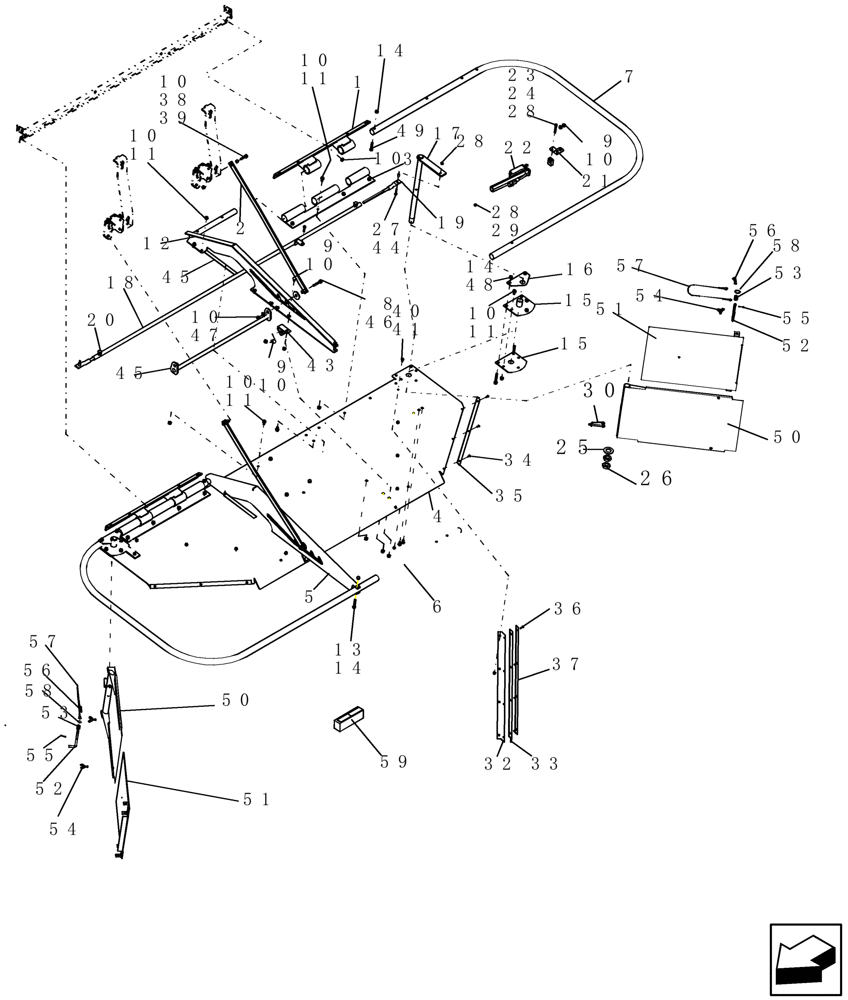

Запчасти Case IH 7130 (88.230.09) - REMOTE ADJUST SPREADER, (EU ONLY) (88) - ACCESSORIES

1

87635316

SUPPORT ASSY.

Hoop Shield

2шт.

2

84136365

SUPPORT

Hoop Shield

2шт.

3

87382523

HINGE

Spreader Shield

2шт.

4

87474999

BRACKET

Spreader

1шт.

5

87473687

SUPPORT

Hoop Shield, Left Hand

1шт.

6

87475002

TUBE,26.99 mm OD x 870 mm L

Hoop Shield, Rear

1шт.

7

87384099

TUBE

Straw Spreader Hoop

2шт.

8

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

2шт.

9

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

12шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

40шт.

11

87681207

BOLT,M8 x 24.1mm, Cl 10.9

22шт.

12

87473689

SUPPORT

Hoop Shield, Right Hand

1шт.

13

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

2шт.

14

86528579

NUT,M8 x 1.25

8шт.

15

84180269

SHIELD

Spreader Lever

4шт.

16

87470044

PLATE ASSY.

Spreader Shield Pivot

2шт.

17

87709569

PIVOT ASSY.

Spreader Pivot

2шт.

18

87709570

BRACKET

Spreader Adjust

1шт.

19

87581467

TUBE,300 mm L

Spreader Adjust

2шт.

20

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

21

87477694

PLATE

Actuator Mounting

1шт.

22

87347281

ACTUATOR

1шт.

22

84335407R

REMAN-ELECTRIC MOTOR

1шт.

22

84335407C

CORE-ELECTRIC MOTOR

Return Number

1шт.

23

87475884

PIVOT ASSY.

Actuator Mounting

1шт.

24

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

1шт.

25

495-11106

WASHER,1", SAE

2шт.

26

87034489

THIN NUT,Hex, M24, 3mm Pitch, Cl 05

4шт.

27

87698832

FLANGE BOLT,Hex, M6 x 35mm, Cl 10.9

2шт.

28

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

4шт.

29

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

1шт.

30

1338021C1

PIN,7.94mm OD

Latch Locking

2шт.

31

87521572

PAD

1шт.

32

87473681

ANGLE

Spreader Shield

2шт.

33

87475886

CANVAS

Spreader Shield

2шт.

34

445394

RIVET,Pop, 3/16" x 1/2" OAL

6шт.

35

87473683

SUPPORT

Seal Retainer

2шт.

36

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

8шт.

37

87475882

SUPPORT

Seal Retainer

2шт.

38

87026609

SPACER,8.48mm ID x 12.7mm OD x 9.53mm L

2шт.

39

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

40

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

8шт.

41

86050300

FLANGE NUT,M6 x 1.0, Cl 10

8шт.

42

87568441

WIRE HARNESS

Spreader Control

1шт.

43

87473675

ANGLE

Spreader Shield

2шт.

44

87301392

SPACER,1/8" Pipe x .591"

2шт.

45

87474831

LATCH

Spreader Shield

1шт.

46

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

47

495-21038

WASHER,5/16"

2шт.

48

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

4шт.

49

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

50

87709567

SHIELD

Spreader

1шт.

51

87377998

SHIELD

Spreader Extension

1шт.

52

87372713

PIN,9.52mm OD

Spreader Shield Lock

1шт.

53

540815R2

SPRING

1шт.

54

3139081R1

THUMB SCREW,M8 x 20

2шт.

55

432-612

COTTER PIN,3/32" x 3/4"

1шт.

56

586591R1

COTTER PIN

1шт.

57

427336A1

CABLE,457.2mm L

1шт.

58

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

59

87608423

SWITCH ASSY

Spreader

1шт.
