Запчасти Case IH 7130 (88.230.03) - AIR COMPRESSOR INSTALLATION- 61/7130 CURSOR 9 (88) - ACCESSORIES

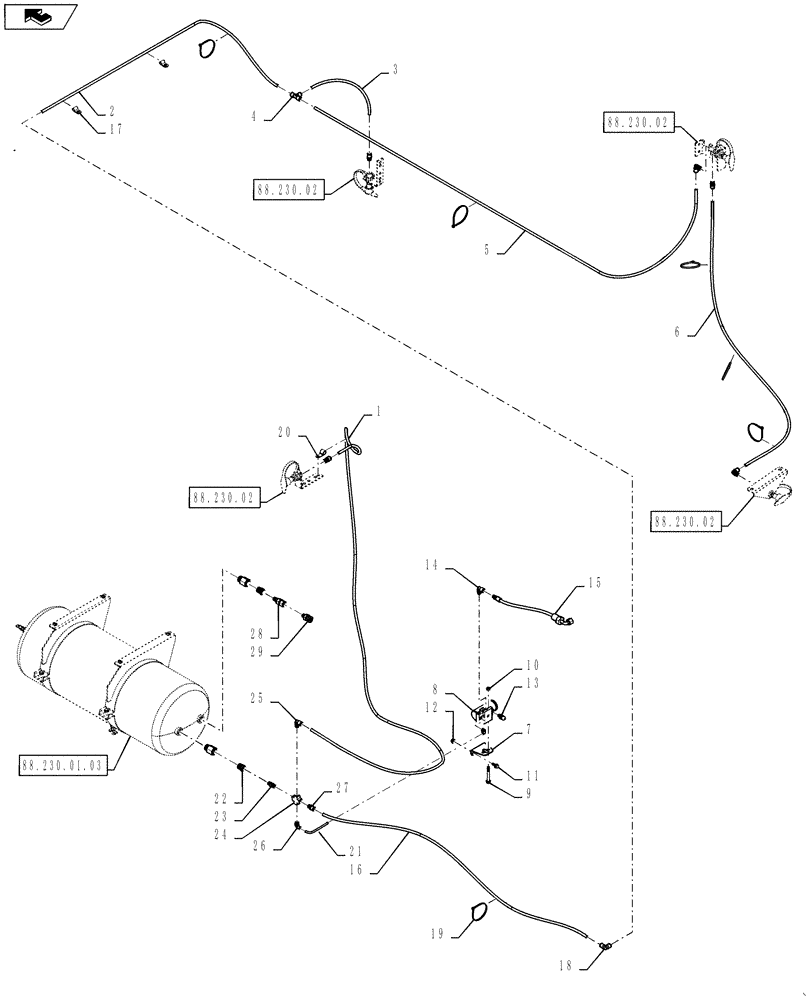

Схема запчастей Case IH 7130 - (88.230.03) - AIR COMPRESSOR INSTALLATION- 61/7130 CURSOR 9 (88) - ACCESSORIES
4
17
26
28
25
10
11
88.230.01.03
13
14
24
18
9
88.230.02
88.230.02
88.230.02
88.230.02
88.230.01 03
8
1
2
15
3
22
29
23
20
16
5
19
6
7
12
21
home
27

Артикул

Название

Примечание

Количество

1

84372640

AIR HOSE

Reservoir To Beacon Quick Disconnect

1шт.

2

84372644

AIR HOSE

Reservoir to Midship Tee

1шт.

3

84176521

HOSE

Midship Tee To Midship Quick Disconnect

1шт.

4

84175931

HYD CONNECTOR

Push Connect, 3/8

1шт.

5

84176522

TUBE,7.11 mm ID x 3220.00 mm

Midship Tee To Operators Platform Quick Disconnect

1шт.

6

84216054

HOSE

Operators Platform To Under Cab Quick Disconnect

1шт.

7

84175791

BRACKET

Governer

1шт.

8

87543712

VALVE PRESSURE RELIE

Governer Assembly

1шт.

9

87656138

BOLT,M8 x 78.1mm, Cl 10.9

2шт.

10

43362

NUT,M8 x 1.25, Cl 10

2шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

84159148

BREATHER

Breather, Air Compressor

1шт.

14

84162974

HYD CONNECTOR

Push Connect, 1/4

2шт.

15

84346374

AIR HOSE

Tube To Reservoir

1шт.

16

84372643

AIR HOSE

Reservoir To Midship Tee

1шт.

17

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

18

84372662

FITTING

Elbow, 3/8

1шт.

19

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

8шт.

20

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

1шт.

21

84372641

AIR HOSE

Reservoir To Beacon Quick Disconnect

1шт.

22

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

23

217-195

FITTING,1/4" - 18 Male NPTF x 1/4" - 18 Male NPTF

1шт.

24

84159156

CROSS,1/4" - 18NPT

1шт.

25

84162975

HYD CONNECTOR

Push Connect 3/8

1шт.

26

84162976

HYD CONNECTOR

Push Connect 1/4

1шт.

27

84162977

HYD CONNECTOR

Push Connect 3/8 OD

1шт.

28

84994444

VALVE SECTION

Non Return Valve

1шт.

29

84173777

UNION

Swivel Adapter 1/4-3/8

1шт.

Выбрано товаров: 29
