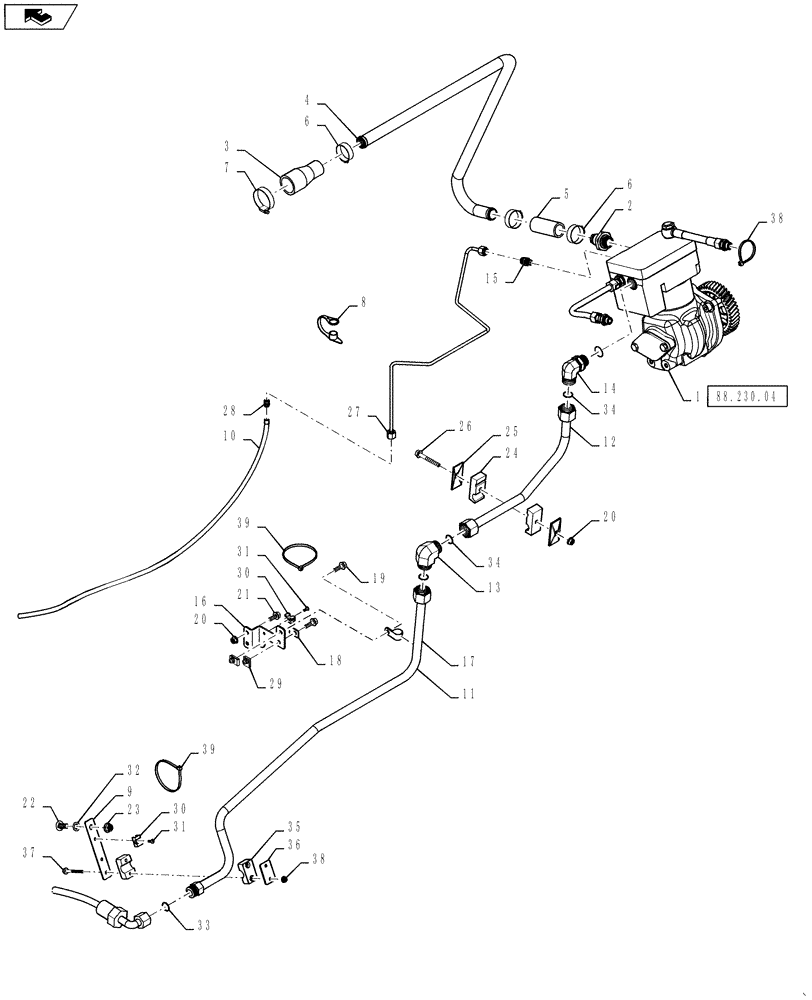

Запчасти Case IH 7130 (88.230.03[02]) - AIR COMPRESSOR INSTALLATION-61/7130 CURSOR 9 CONTINUED (88) - ACCESSORIES

1

87520365

AIR COMPRESSOR

Air Compressor Complete, See Page 88.230.04

1шт.

2

84036669

FITTING

2шт.

3

84073303

HOSE,25mm ID - 38mm ID x 100mm OAL

1шт.

4

84227701

RIGID TUBE

To Air Intake *Before New Installation, Remove Nipple From Air Intake Crossover Tube 84073303*

1шт.

5

87637434

HYDRAULIC HOSE,1" ID x 3.1" L

1шт.

6

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

3шт.

7

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

1шт.

8

84265835

COVER

4шт.

9

84527246

BRACKET

1шт.

10

84394634

AIR HOSE

1шт.

11

84342707

RIGID TUBE

1шт.

12

84342706

RIGID TUBE

1шт.

13

201-338

ELBOW,90 Degree, 1 3/16"-12, ORFS

1шт.

14

87598659

ELBOW

1шт.

15

82019386

HYD CONNECTOR

1шт.

16

84372654

BRACKET

1шт.

17

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

18

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

22

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

23

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

24

87000143

CLAMP

1шт.

25

87000230

PLATE

2шт.

26

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

27

84376755

TUBE

Governer

1шт.

28

84353820

FITTING

1шт.

29

86508354

PUSH-ON NUT,M8 x 1.25

2шт.

30

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

31

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

32

87698854

NUT,M10

1шт.

33

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

4шт.

35

86900723

CLAMP

1шт.

36

1541537C1

PLATE

1шт.

37

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

38

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.
