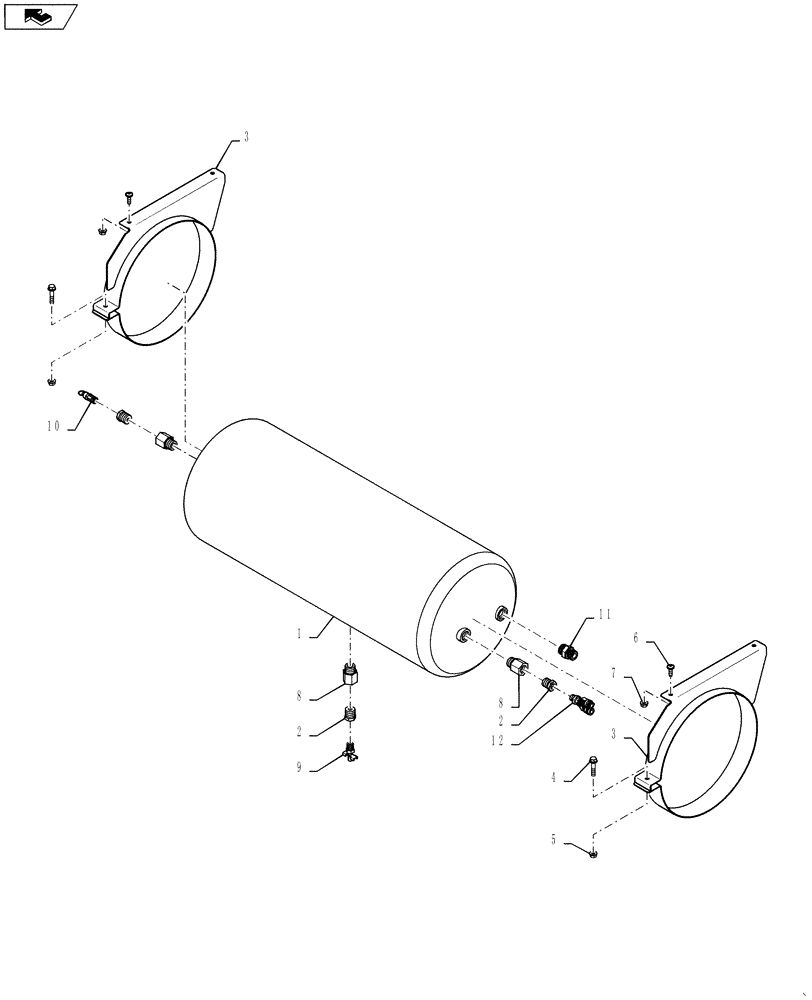

Запчасти Case IH 7130 (88.230.01[03]) - AIR COMPRESSOR TANK AND FITTINGS (88) - ACCESSORIES

1

84036945

AIR RESERVOIR

60L

1шт.

2

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

3

84144718

BRACKET

2шт.

4

87698834

BOLT,M8 x 48.1mm, Cl 10.9

2шт.

5

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

6

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

4шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

8

84171940

HYD CONNECTOR

M22x1.5 to 1/2" NPTF

3шт.

9

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Fuel Tank Drain

1шт.

10

84994447

VALVE PRESSURE RELIE

Safety Valve

1шт.

11

9516263

FITTING

1шт.

12

84249467

FITTING

1шт.
