Запчасти Case IH 7130 (88.220.06) - CHOPPER GRATE/KNIFEBLOCK/ADJUSTMENT LINKAGE (88) - ACCESSORIES

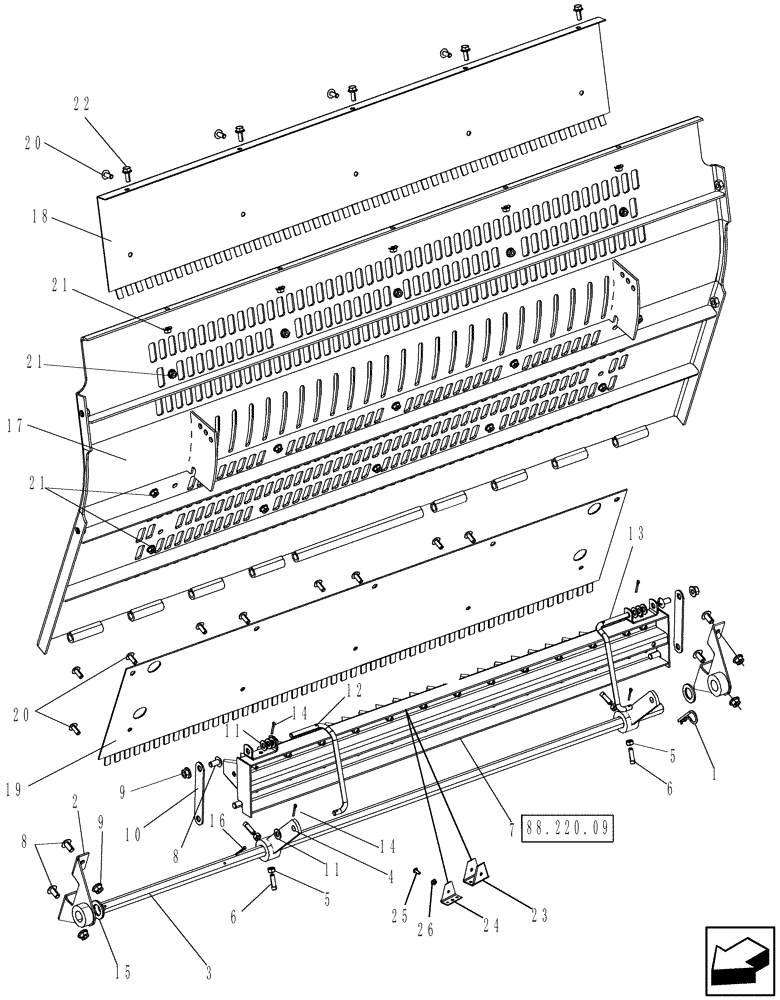

Схема запчастей Case IH 7130 - (88.220.06) - CHOPPER GRATE/KNIFEBLOCK/ADJUSTMENT LINKAGE (88) - ACCESSORIES
2
1
17
15
20
14
13
9
8
6
20
5
23
11
7
88.220.09
10
5
24
6
22
12
16
14
21
21
21
3
11
9
26
25
18
19
8
4

Артикул

Название

Примечание

Количество

1

480523R1

HAIR PIN COTTER

1шт.

2

87379134

SUPPORT ASSY.

Chopper Adjustment

2шт.

3

391221A1

SHAFT

Chopper Adjustment

1шт.

4

391230A1

PIVOT

Arm Assembly, Chopper Adjustment

2шт.

5

425-105

NUT,5/16"-18, G5

4шт.

6

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

4шт.

7

87323280

PACKAGE

Chopper Concave Ref # 23, 24, 25 26

1шт.

8

87573369

SERRATED SCREW,Sl Truss, M10 x 20mm, Cl 10.9

6шт.

9

825-51410

FLANGE NUT,M10, Flg Ser

6шт.

10

391218A1

STRAP

Retainer

2шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

8шт.

12

391222A1

ROD

Chopper Adjustment

1шт.

13

395513A1

ROD

Chopper Adjustment, Right Hand

1шт.

14

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

15

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

2шт.

16

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

17

87746115

BOTTOM

Chopper

1шт.

18

87746086

COVER

Chopper Concave

1шт.

19

87746089

COVER

Chopper Concave

1шт.

20

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

15шт.

21

825-5148

SERRATED NUT,M8, Flg Ser

20шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

5шт.

23

87315088

BLADE

12шт.

24

87315089

BLADE

1шт.

25

412-412

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 3/4", Gr 2

26шт.

26

231-5344

FLANGE NUT,Flg, 1/4"-20

26шт.

Выбрано товаров: 26
