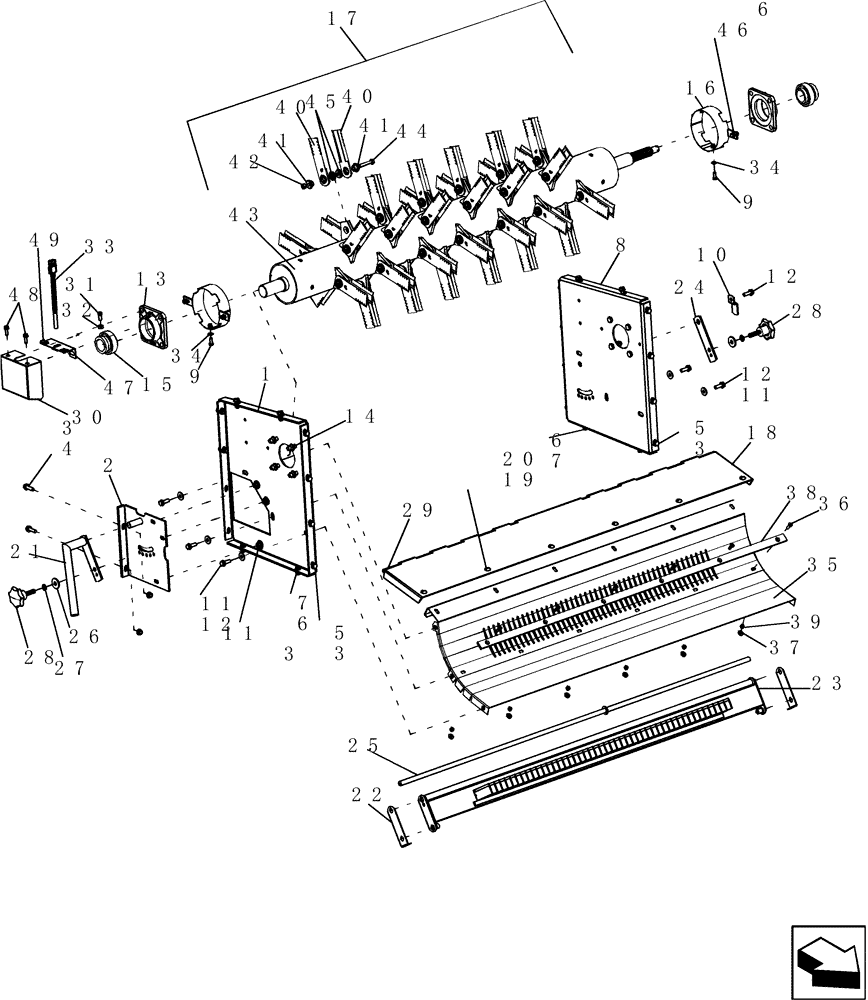

Запчасти Case IH 7130 (88.220.05) - CHOPPER BODY, 6 ROW FLAIL (88) - ACCESSORIES

1

87589802

SUPPORT ASSY.

Side, Left Hand

1шт.

2

87585119

PLATE ASSY.

Access Cover

1шт.

3

86050279

FLANGE NUT,M10 x 1.5, Cl 10

23шт.

4

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.

5

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

18шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

8

87589800

SUPPORT ASSY.

Side, Right Hand

1шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

10

140527A1

LATCH ASSY.

Right Hand

1шт.

11

496-41041

WASHER,13/32" x 1 1/8" x .134"

8шт.

12

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

6шт.

13

87585121

BEARING HOUSING,81.84 mm OD x 39 mm

Bearing

2шт.

14

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

8шт.

15

87585122

BEARING ASSY,45mm ID x 85mm OD x 22mm W

2шт.

16

87681530

SUPPORT ASSY.

2шт.

17

87585115

STRAW CHOPPER

Incl 40 - 45

1шт.

18

1347207C1

DOOR

Chopper Bottom

1шт.

19

87573369

SERRATED SCREW,Sl Truss, M10 x 20mm, Cl 10.9

6шт.

20

825-51410

FLANGE NUT,M10, Flg Ser

6шт.

21

140525A1

HANDLE

1шт.

22

1322248C2

BLOCK

Right Hand

2шт.

23

140961A1

SUPPORT

Fixed Knife

1шт.

24

140760A1

LEVER

1шт.

25

140521A1

ROD

1шт.

26

495-81162

WASHER,17/32" x 1 1/2" x .179"

2шт.

27

892-11012

LOCK WASHER,M12

2шт.

28

1322232C2

HANDLE

2шт.

29

182980C1

ROD,11.11mm OD x 1556mm L

Hinge

1шт.

30

87473361

COVER ASSY

SHIELDS, Chopper, Left Hand

1шт.

31

87473296

SET SCREW,Sq Hd, M10 x 1 x 20mm, Cl 12.9

1шт.

32

84022934

NUT,M10 x 1, Cl 8

1шт.

33

87650675

SENSOR

12 mm, Hall RPM

1шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

35

87585116

CONCAVE

1шт.

36

906035R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 25mm, Cl 10.9

6шт.

37

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

38

87585123

STRIPPER

1шт.

39

86639316

WASHER,8.4mm ID x 20mm OD x 2mm Thk

6шт.

40

87593795

KNIFE BLADE

76шт.

41

1994758C2

BUSHING,10.5mm ID x 30mm OD x 15mm L

76шт.

42

832-41310

NUT,M10 x 1.5, Cl 10

38шт.

43

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

44

828-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

38шт.

45

1322242C1

SPACER

76шт.

46

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

47

87703786

BRACKET

Chopper Sensor

1шт.

48

87698833

BOLT,M8 x 33.1mm, Cl 10.9

M8 x 25, 10.9 FLG

2шт.

49

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

Spring, M8 x 1.25

2шт.
