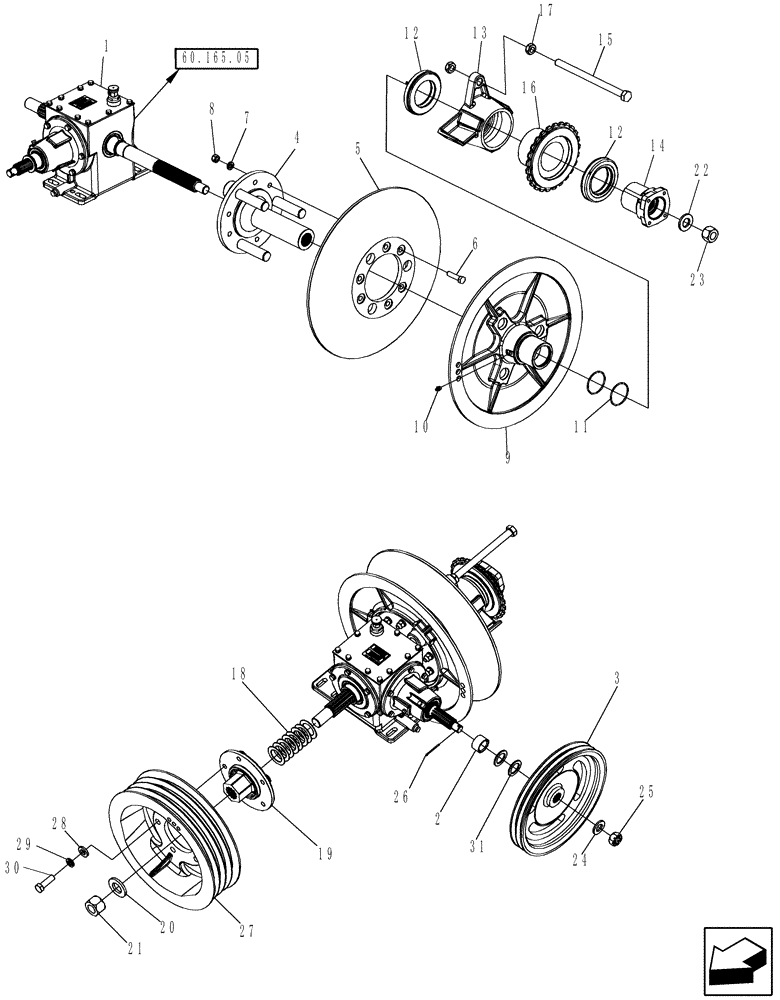

Запчасти Case IH 7130 (88.210.17[02]) - HOUSING ASSEMBLY, CHOPPER DRIVE WITH PULLEYS - 61/7130 (88) - ACCESSORIES

1

87634147

GEARBOX

GEAR CASE ASSEMBLY, Chopper

1шт.

2

87745589

SPACER

Chopper Driver Pulley

1шт.

3

87735266

PULLEY,356mm OD

Chopper Drive

1шт.

4

87307489

HUB

Stationary, Rotor Drive

1шт.

5

87602134

PULLEY

Rotor Drive Fixed

1шт.

6

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

7

492-21050

LOCK WASHER,1/2"

6шт.

8

429-108

NUT,1/2"-13, G8

6шт.

9

87307503

PULLEY ASSY.

Rotor Drive Variable

1шт.

10

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

11

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

2шт.

12

278927A1

THRUST BEARING,69.84mm ID x 113.79mm OD x 22.1mm W

2шт.

13

87307508

SLEEVE

Variator Pulley, Female

1шт.

14

87307510

COUPLING

Universal Joint

1шт.

15

413-12176

BOLT,3/4"-10 x 11", Gr 5

1шт.

16

87307512

SLEEVE

Variator Pulley, Male

1шт.

17

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

18

87313981

WASHER,1.66" ID x 2.5" OD x 0.06" Thk

8шт.

19

87677098

PULLEY ASSY.

Separator Driven

1шт.

20

87301675

WASHER,1.38" ID x 2.5" OD x 0.25" Thk

1шт.

21

231-41120

NUT,1 1/4"-7, GB

1шт.

22

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

23

232-41316

NUT,1"-8, GC

1шт.

24

87613300

WASHER,0.94" ID x 1.75" OD x 0.18" Thk

1шт.

25

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

26

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

27

87677105

PULLEY ASSY.

Separator Driven

1шт.

28

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

5шт.

29

87016618

LOCK WASHER,M16

5шт.

30

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

5шт.

31

87629040

WASHER,1.34" ID x 2" OD x 0.12" Thk

2шт.
