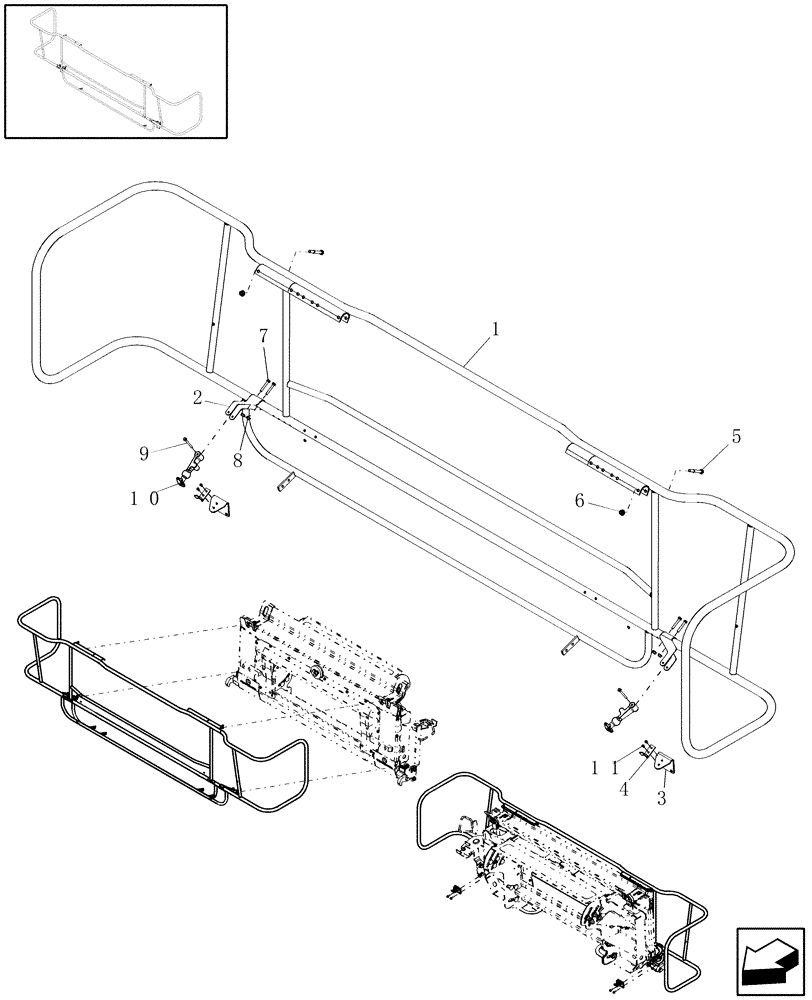

Запчасти Case IH 7130 (88.210.09) - FRONT GUARD, GERMANY ONLY (88) - ACCESSORIES

1

419643

SHIELD

Guard

1шт.

2

84214575

BRACKET

Feeder Guard Frame

2шт.

3

84214571

BRACKET

Feeder Guard

2шт.

4

453857

CLIP

2шт.

5

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

6

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

7

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

4шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

9

87400

COTTER PIN,3/16" x 2"

2шт.

10

353067

LATCH

Latch

2шт.

11

425519

RIVET,Pop, 3.96mm OD x 8.6mm L

Alum Pop

4шт.
