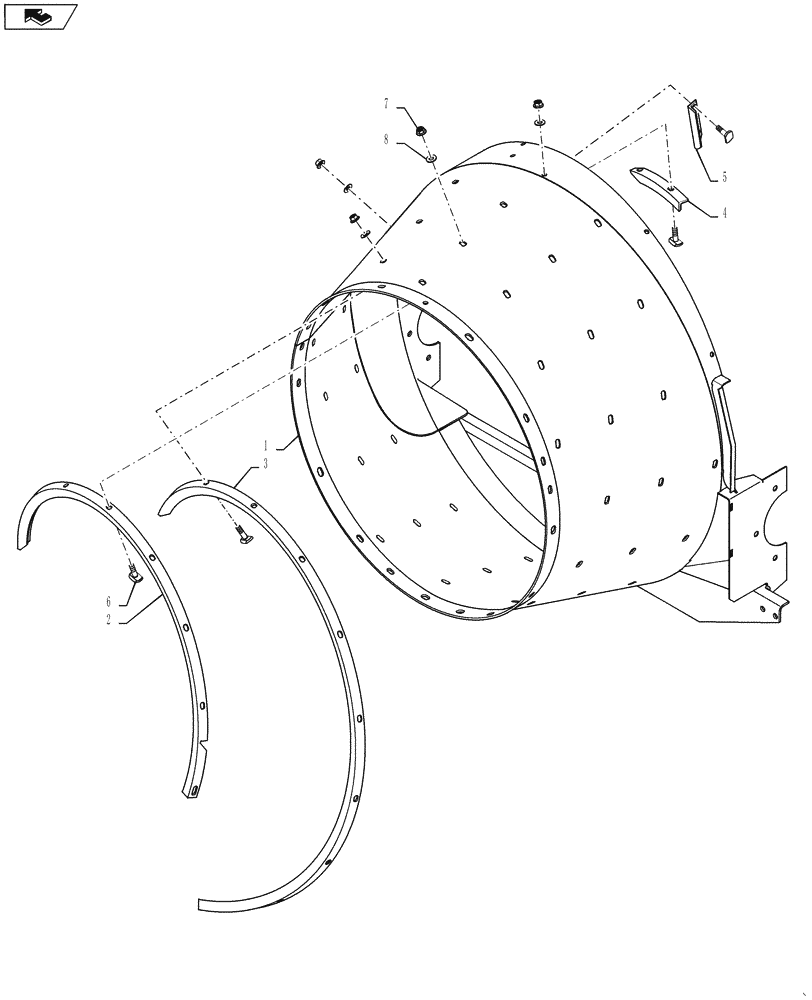

Запчасти Case IH 7130 (88.200.01) - DIA,TRANSITION CONE STD WEAR (88) - ACCESSORIES

84265390

KIT

DIA, Transition Cone, Std Service

1шт.

1

418660A3

CONE

Rotor Transition

1шт.

2

428280A2

STIFFENER

Short Std Wear

1шт.

3

428279A2

STIFFENER

Long Std Wear

1шт.

4

428281A1

STIFFENER

Extension Std Wear

1шт.

5

428282A1

STIFFENER

Pocket Std Wear

1шт.

6

87106338

BOLT

47шт.

7

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

47шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

47шт.
