Запчасти Case IH 7130 (88.100.03) - DIA, FOOT AND INCH (F-N-I) INSTALLATION (88) - ACCESSORIES

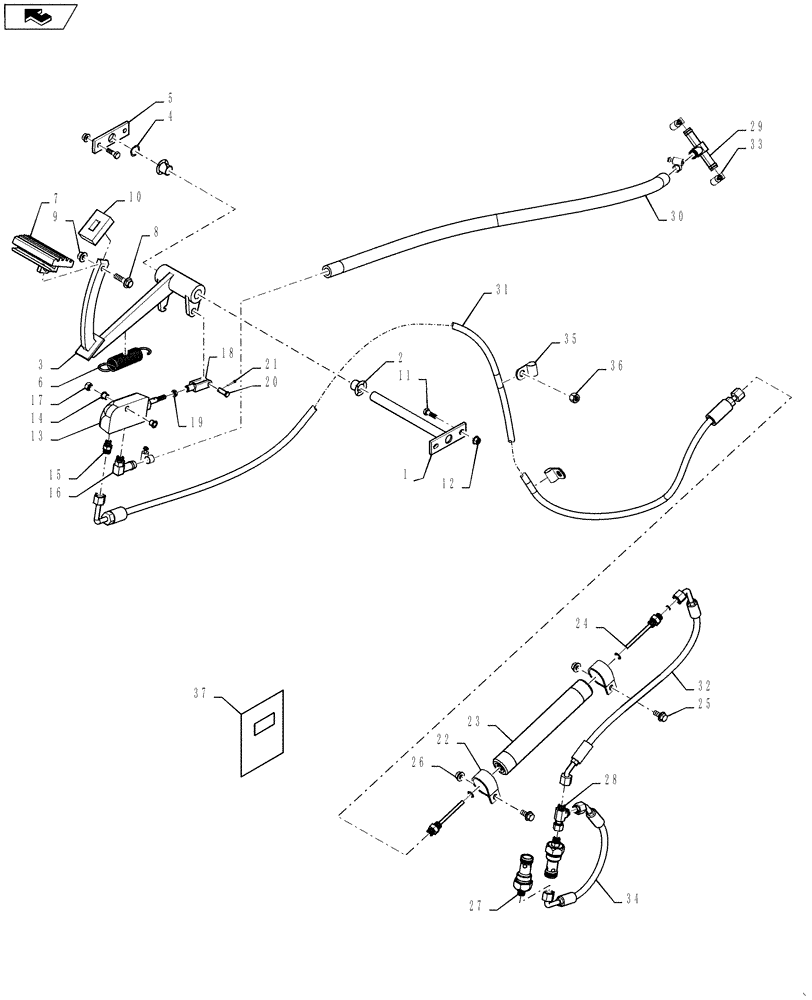

Схема запчастей Case IH 7130 - (88.100.03) - DIA, FOOT AND INCH (F-N-I) INSTALLATION (88) - ACCESSORIES
21
2
14
31
36
12
23
20
13
32
35
19
30
11
10
17
25
5
3
8
18
16
24
37
22
34
29
6
27
home
4
1
33
7
15
28
9
26

Артикул

Название

Примечание

Количество

84365502

DIA KIT, HARVESTER

Foot And Inch (F-N-I), Includes 1-37

1шт.

1

120160A2

SHAFT

1шт.

2

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

2шт.

3

119901A3

PEDAL

Right Brake

1шт.

4

G49413

WASHER

1шт.

5

1281794C1

PLATE

1шт.

6

182652A1

SPRING

1шт.

7

119902A1

PAD

1шт.

8

274254

BOLT,Hex Flg, M10 x 35mm, Stainless

1шт.

9

43435

FLANGE NUT,Hex, M10 x 1.5

1шт.

10

120159A1

FOAM INSULATION

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

12

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

13

84365986

CONTROL VALVE

1шт.

14

19-6263

NYLON BEARING,0.38" ID x 0.59" OD x 0.38"

2шт.

15

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

16

86625048

FITTING,90 Degree, 5/8" Hose x 9/16"-18 ORB Beaded

1шт.

17

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

1шт.

18

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

19

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

20

327-5094

CLEVIS PIN,5/16" x .940"

1шт.

21

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

22

243755A1

CLAMP,39.67mm ID, 10.3mm Bolt Hole, P Type

2шт.

23

242967A1

TUBE,31.6 mm ID, 41.3 mm OD, 270 mm Length

1шт.

24

243956A1

FITTING

2шт.

25

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

2шт.

26

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

27

193647A1

VALVE PRESSURE RELIE

2шт.

28

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

1шт.

29

84367016

TEE

1шт.

30

84349400

HOSE

Drain

1шт.

31

141126A2

HOSE,6.35mm ID x 2800mm L

Supply

1шт.

32

84385308

HOSE

Supply To Tube

1шт.

33

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

4шт.

34

141127A3

HOSE,6.35mm ID x 400mm L

Relief Valve

1шт.

35

86639005

CLAMP,15.9mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

36

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

1шт.

37

84367749

INSTRUCTION

1шт.

Выбрано товаров: 38
