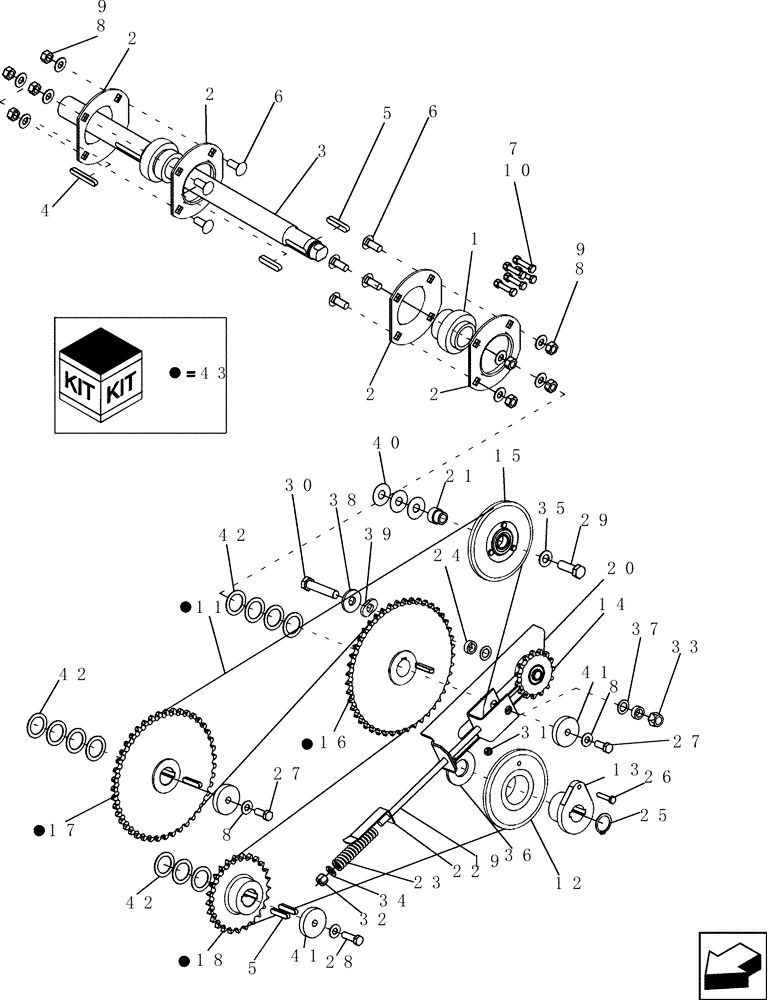

Запчасти Case IH 7130 (80.175.02) - UNLOADING CHAIN DRIVE (80) - CROP STORAGE/UNLOADING

1

455805

BALL BEARING,40mm ID x 80mm OD x 42.9mm Thk

With Lock Collar

2шт.

2

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

4шт.

3

87555273

SHAFT

Unloader Drive

1шт.

4

323190

KEY,10mm x 8mm x 63mm

1шт.

5

170012

KEY,8mm W x 50mm OAL

6шт.

6

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

7

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

5шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

11шт.

9

9706685

NUT,M12 x 1.75, Cl 8

8шт.

10

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.

11

84250965

CHAIN LINK

Unloader Drive, 3.3 BPS 6130/7130

1шт.

11

87707588

CHAIN (AG),60H, 266 Links x 19.05mm = 5067.3mm

60H, 2.5 BPS 5130

1шт.

12

84069795

SPROCKET

Driven

1шт.

13

84073176

SHEAR BOLT BUSHING

1шт.

14

86627639

SPROCKET,15T

1шт.

15

86565318

SPROCKET,25T

1шт.

16

84069677

SPROCKET,43T

Rear Driven, 43T, 3.3 bps, 6130/7130

1шт.

16

87705471

SPROCKET ASSY.

Rear Driven, 55T, 2.5 BPS 5130

1шт.

17

84069777

SPROCKET

Front Driven, 38T, 3.3 BPS 6130/7130

1шт.

17

87705478

SPROCKET ASSY.

Front Driven, 53T, 2.5 BPS 5130

1шт.

18

84069770

SPROCKET

Vertical Driven, 25T, 3.3 BPS 6130/7130

1шт.

18

87705556

SPROCKET ASSY.,33T

Vertical Driven, 33T, 2.5 BPS 5130

1шт.

19

86588887

CLEVIS

1шт.

20

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

21

9515145

BUSHING,17mm ID x 30mm OD x 29mm L

1шт.

22

86601493

INDICATOR

1шт.

23

337829

SPRING

1шт.

24

86582836

SPACER

2шт.

25

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

26

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

27

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

28

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

29

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

1шт.

30

120093

BOLT,M16 x 2.0 x 90.18mm, Cl 8.8

1шт.

31

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

32

412126

NUT,M12 x 1.75

1шт.

33

86000441

NUT,M16 x 2.0, Cl 8

1шт.

34

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

35

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

36

84073175

WASHER,35.1mm ID x 71.5mm OD x 5mm Thk

1шт.

37

34821

WASHER,17.86mm ID x 28.57mm OD x 1.52mm Thk

2шт.

38

86519909

WASHER,17mm ID x 46mm OD x 5mm Thk

1шт.

39

86623083

SPACER

1шт.

40

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

3шт.

41

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

3шт.

42

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

11шт.

43

87710067

DIA KIT, HARVESTER

DIA, Harvest Kit, Unloading Slow Down, Incl 11, 16 - 18, 6130/7130 Only

1шт.

44

86595269

LINK,19.05mm Pitch

Chain Connecting Link Not Shown

1шт.
