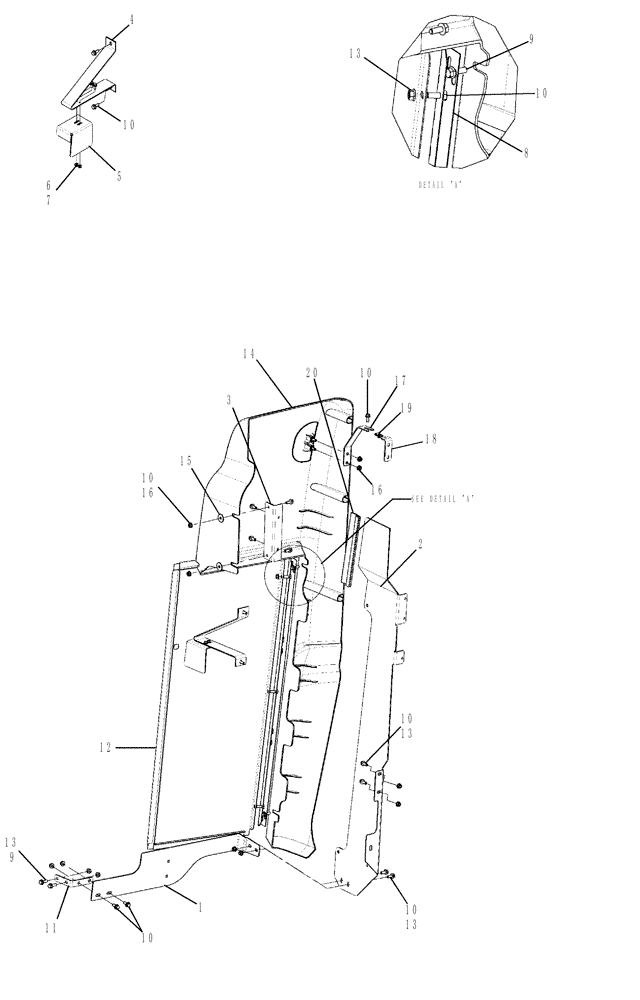

Запчасти Case IH 7130 (80.154.16) - CORNER COVERS, GRAIN TANK, RIGHT HAND FRONT (80) - CROP STORAGE/UNLOADING

1

87703141

BRACKET

1шт.

2

84250559

BRACKET

1шт.

3

87615818

BRACKET

1шт.

4

87615815

BRACKET

1шт.

5

190232A2

SUPPORT

1шт.

6

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

M6X16

2шт.

7

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

8

128919A3

HINGE

Grain Tank Trim Door

1шт.

9

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

16шт.

11

87545914

SUPPORT

1шт.

12

84136359

DOOR

RH Front Grain Tank Door

1шт.

182925A1

LOCK

Component To Door, Latch For NA Only

1шт.

143347A1

LATCH

Component To Door, Latch For EU Only

1шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

14

87658410

PANEL ASSY.

Grain Tank Cornor RH

1шт.

15

140075

WASHER,8.5mm ID x 30mm OD x 2mm Thk

2шт.

16

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

17

87709069

BRACKET

Grain Tank Cornor

1шт.

18

87757940

BRACKET

Grain Tank Cornor RH

1шт.

19

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

1шт.

20

84250551

SEAL

1шт.
