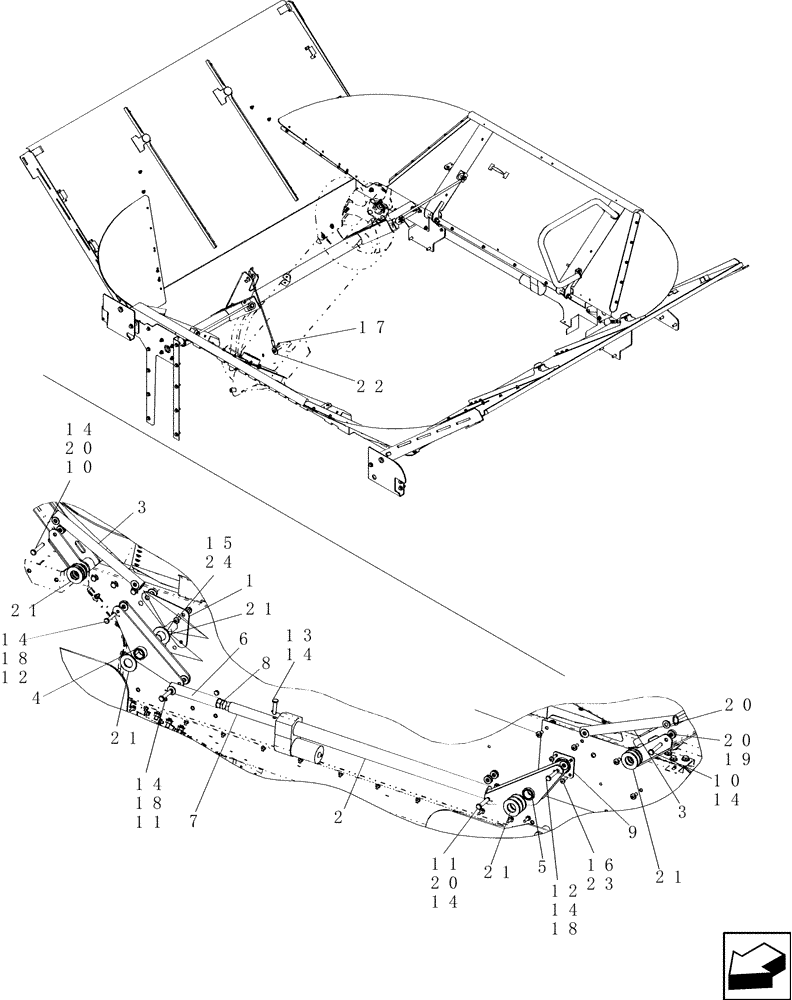

Запчасти Case IH 7130 (80.154.15) - GRAIN TANK ACCESS COVER, ACTUATOR AND LINKAGE (80) - CROP STORAGE/UNLOADING

1

87619951

BRACKET

Tube Support, Grain Tank

1шт.

2

84181862

ACTUATOR

Grain Tank

1шт.

3

87731370

TUBE,25.4 mm ID x 34.925 mm OD x 400 mm L

Top Link, Tank Cover

2шт.

4

87731372

LINK ASSY.

Tank Cover, Left Hand Lower

1шт.

5

87720937

LINK ASSY.

Right Hand Lower, With Bearing

1шт.

6

87740256

BAR ASSY.

Actuator Extension, Linkage Side

1шт.

7

87740258

BAR ASSY.

Actuator Extension, Actuator Side

1шт.

8

10726721

THIN NUT,Thin, M20 x 1.5, Cl 05

1шт.

9

87710467

SUPPORT ASSY.

Rockshaft, With Bushing

1шт.

10

84522945

HEADLESS PIN,12mm OD x 75mm L

2шт.

11

84522949

HEADLESS PIN,12mm OD x 70mm L

2шт.

12

84522947

HEADLESS PIN,10mm OD x 70mm L

2шт.

13

NSS

NOT SOLD SEPARAT

PIN, Clevis

1шт.

14

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

13шт.

15

87036807

SCREW,Pan Cross Recess Phillips, M10 x 1.5 x 20mm, Cl 4.8

8шт.

16

86585704

SCREW,Phillips Drive, Pan HD, M8 x 25mm, Cl 4.8

4шт.

17

394818

COTTER PIN,M5 x 25

1шт.

18

87613189

WASHER,0.53" ID x 1.25" OD x 0.06" Thk

8шт.

19

86592713

WASHER,13mm ID x 30mm OD x 6mm Thk

2шт.

20

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

8шт.

21

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

11шт.

22

495-61066

WASHER

1шт.

23

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

24

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.
