Запчасти Case IH 7130 (80.150.19) - GRAIN TANK ACCESS COVER HARDWARE (80) - CROP STORAGE/UNLOADING

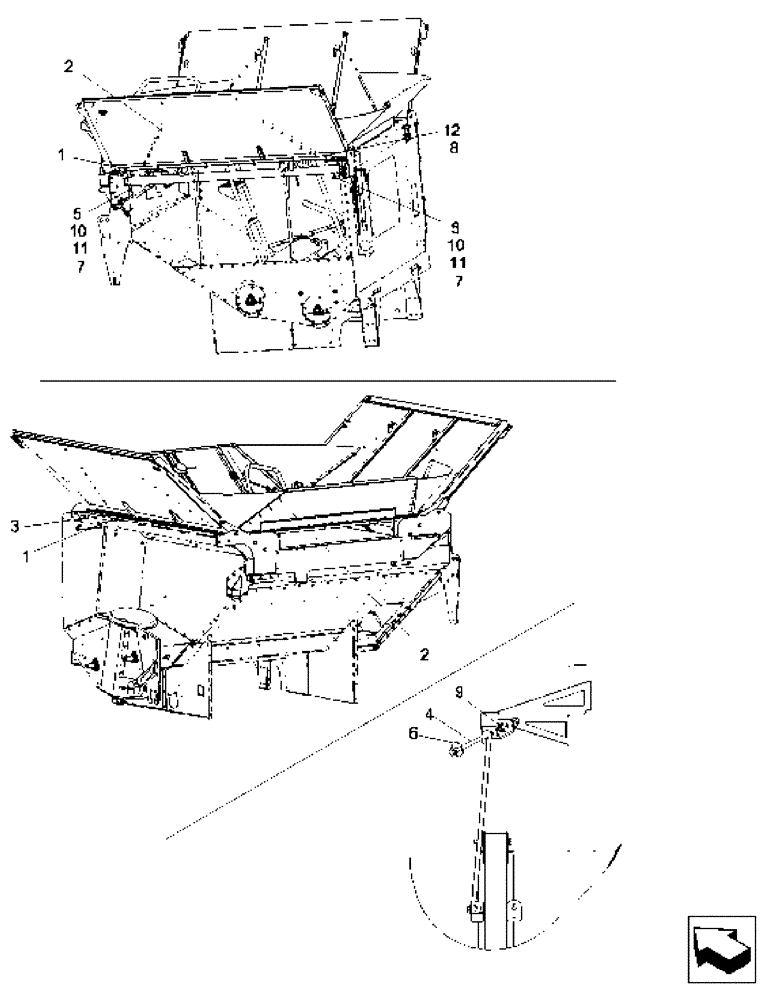

Схема запчастей Case IH 7130 - (80.150.19) - GRAIN TANK ACCESS COVER HARDWARE (80) - CROP STORAGE/UNLOADING
6
2
1
8
7
12
11
2
10
10
9
9
5
1
11
7
4
3

Артикул

Название

Примечание

Количество

1

87605674

SUPPORT ASSY.

Grain Tank Top With Cover

2шт.

2

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

250 Bushel

48шт.

2

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

300 Bushel

56шт.

3

87673844

SELF-TAP SCREW,M8 x 1.25 x 20mm

6шт.

4

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

2шт.

5

87698807

BOLT,Hex, M16 x 120mm, Cl 10.9

2шт.

6

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

7

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

9

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

10

392530

NUT,M16, Cl 10

2шт.

11

10717511

THIN NUT,Thin, M16 x 2, Cl 04

2шт.

12

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

Выбрано товаров: 13
