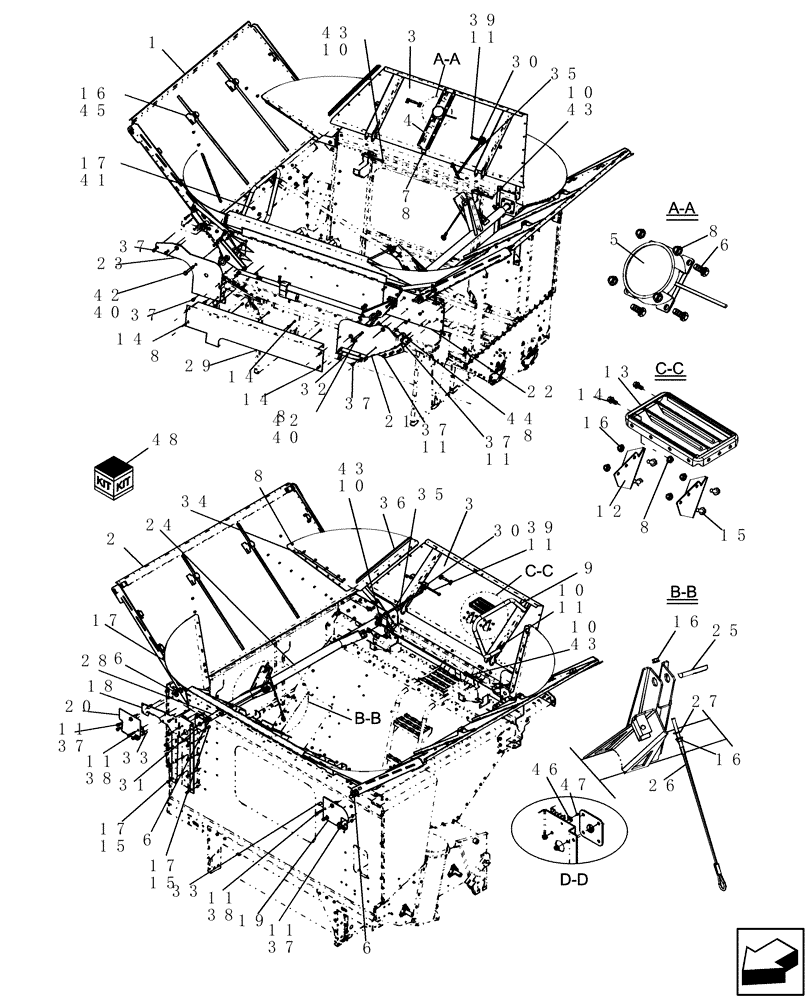

Запчасти Case IH 7130 (80.150.18) - GRAIN TANK ACCESS COVER (80) - CROP STORAGE/UNLOADING

1

87556613

COVER ASSY

Access, Grain Tank, Left Hand

1шт.

2

87556597

COVER ASSY

Access, Grain Tank, Right Hand

1шт.

3

87554394

EXTENSION ASSY.

Front And Rear, 24 Inch, 250 Bushel Grain Tank

2шт.

3

87721662

EXTENSION ASSY.

Front, 32 Inch, 300 Bushel Grain Tank

1шт.

3

87735049

EXTENSION ASSY.

Rear, 32 Inch, 300 Bushel Grain Tank

1шт.

4

87756703

BRACKET

Tank Level Sensor, 24 Inch, 250 Bushel Grain Tank

1шт.

4

87685904

BRACKET

Tank Level Sensor, 32 Inch, 300 Bushel Grain Tank

1шт.

5

87701176

SENSOR

Full Grain Tank Level, For 3/4 Full See Figure 55.408.01

1шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

7шт.

7

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

3шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

45шт.

9

87109875

HANDLE

Grab, 250 Bushel Grain Tank

1шт.

9

87648705

HANDLE

Grab, 300 Bushel Grain Tank

1шт.

10

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

6шт.

11

86512497

FLANGE NUT,M12 x 1.75, Cl 10

16шт.

12

87609690

BRACKET

Step, Extension, 300 Bushel Grain Tank

2шт.

13

1531337C1

STEP

300 Bushel Grain Tank

1шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

12шт.

15

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

18шт.

16

86050279

FLANGE NUT,M10 x 1.5, Cl 10

26шт.

17

87734459

CANVAS

Extension Corner, 24 Inch, 250 Bushel Grain Tank

4шт.

17

87726836

CANVAS,938.3mm W x 1345.5mm L

Extension Corner, 32 Inch, 300 Bushel Grain Tank

4шт.

18

84383903

BRACKET

Rockshaft, Front

1шт.

19

87727126

BRACKET

Tank Cover, Left Hand Front

1шт.

20

87727129

BRACKET

Tank Cover, Right Hand Front

1шт.

21

47384089

BRACKET

Tank Cover, Right Hand Rear

1шт.

22

87727319

SUPPORT ASSY.

Tank Cover, Right Hand Rear

1шт.

23

84300526

BRACKET

Tank Cover, Left Hand Rear

1шт.

87392235

SENSOR

Component Part Of Ref. 23 Switch Non-Contact Normally Open

1шт.

84203502

BRACKET

Component Part Of Ref. 23

1шт.

86511920

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

Component Part Of Ref. 23

2шт.

86632551

NUT,#10-24, GB

Component Part Of Ref. 23

2шт.

24

84397167

ROCKSHAFT

Rockshaft, Tank Cover

1шт.

25

84208529

BAR

Cable, Bubbler Linkage

1шт.

26

87740261

CABLE ASSY.

Bubbler Auger Lifting

1шт.

27

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

28

87726831

TUBE,31.7729 mm DIA

End, Front, With Bearing

1шт.

29

84300520

COVER ASSY

Access, Actuator

1шт.

30

87631786

CHANNEL

Wear

2шт.

31

87631278

PLATE ASSY.

Rockshaft Retaining

1шт.

32

87643551

CHANNEL

Baffle Cover

1шт.

33

87686085

SPACER

Front Stopper

2шт.

34

87740262

STRAP

Corner, 250 Bushel Grain Tank

4шт.

34

87727124

STRAP

Corner, 300 Bushel Grain Tank

4шт.

35

87679667

ROD

Linkage, Extension

2шт.

36

84194670

ANGLE

250 Bushel Grain Tank

4шт.

36

87735041

ANGLE

300 Bushel Grain Tank

4шт.

37

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

17шт.

38

87698845

BOLT,M12 x 70, Cl 10.9

2шт.

39

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

2шт.

40

87028052

BOLT,Hex Flg, M16 x 140, 10.9

2шт.

41

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

42

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

43

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

4шт.

44

86585704

SCREW,Phillips Drive, Pan HD, M8 x 25mm, Cl 4.8

2шт.

45

190029

STOP,M10 x 1.0 x 20mm OD, Rubber

2шт.

46

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

47

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

48

84385831

SERVICE KIT

Powered Grain Tank Covers

1шт.

49

84385163

DIA KIT, HARVESTER

Powered Grain Tank Extension Kit

1шт.
