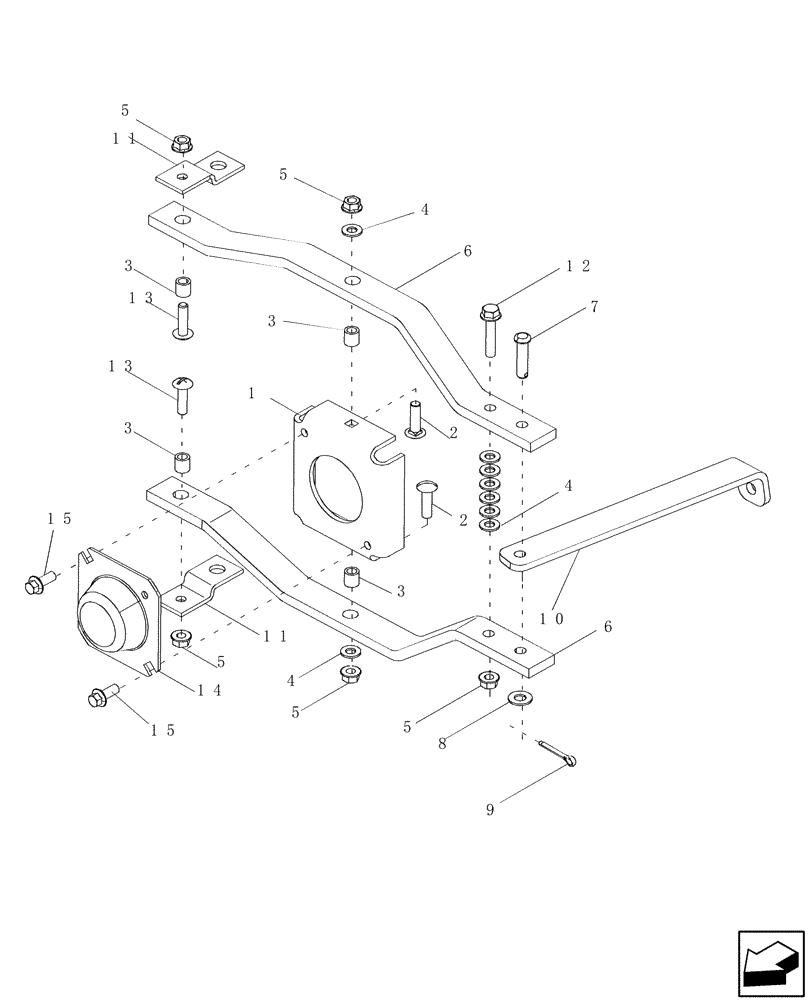

Запчасти Case IH 7130 (74.136.02) - CONTROL ASSEMBLY, CLEANING FAN SPEED (74) - CLEANING

1

87647073

BRACKET

Fan Driver

1шт.

2

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

2шт.

3

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

4

495-11034

WASHER,5/16", SAE

8шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

6

87647079

COVER ASSY

Fan Control

2шт.

7

439-1624

HEADED PIN,3/8" x 1 1/2"

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

10

87647071

PLATE ASSY.

Fan Drive Control

1шт.

11

142853A2

SUPPORT

Fan Adjuster Extension

2шт.

12

87698834

BOLT,M8 x 48.1mm, Cl 10.9

1шт.

13

847-3830

SERRATED SCREW,Sl Truss, M8 x 30mm, Cl 10.9

2шт.

14

87647075

COVER ASSY

Fan Drive Bearing

1шт.

15

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

2шт.
