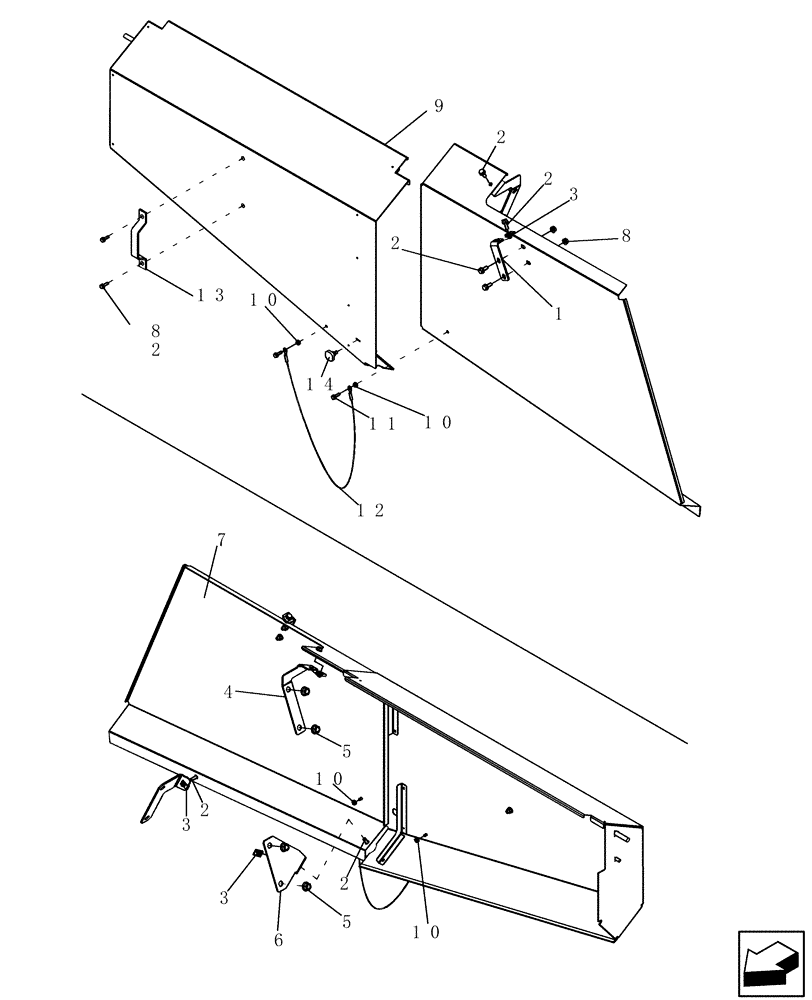

Запчасти Case IH 7130 (74.135.10) - CHAFF SPREADER - SHIELDS (74) - CLEANING

1

84127465

BRACKET

Fixed Straw Spreader Shield

1шт.

2

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

3

86508354

PUSH-ON NUT,M8 x 1.25

4шт.

4

87654964

BRACKET

Fixed Shield, Lower

1шт.

5

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

6

84136322

BRACKET

Fixed Spreader Drive Shield

1шт.

7

84136319

BRACKET

Fixed Straw Spreader Drive

1шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

9

87655293

PANEL ASSY.

Straw Spreader Drive Shield

1шт.

10

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

11

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

12

132657A2

CABLE

Reverser Shield Tether

1шт.

13

87735697

LATCH

Door

1шт.

14

182925A1

LOCK

NA Only Latch

1шт.

182926A1

LOCK

EU Only latch

1шт.
