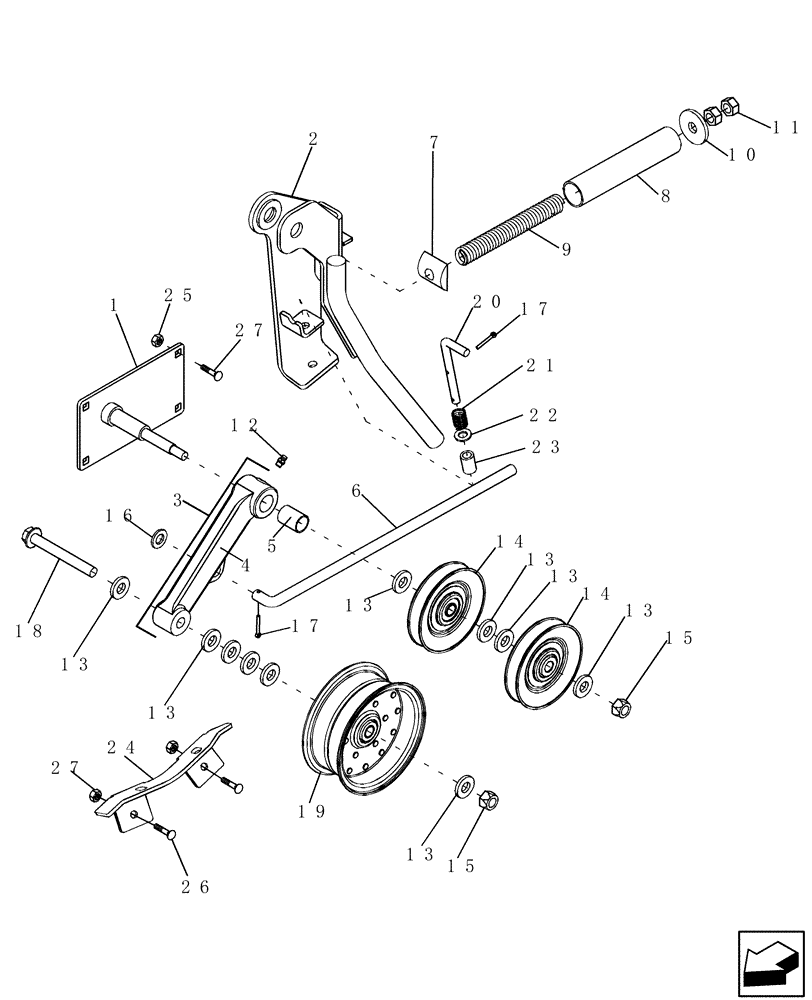

Запчасти Case IH 7130 (74.135.09) - CHAFF SPREADER - IDLER ASSEMBLY (74) - CLEANING

1

87559875

TIGHTENER

Spreader Drive

1шт.

2

87639306

LEVER ASSY.

Spreader Drive

1шт.

3

87668016

ARM ASSY.

Incl 4, 5

1шт.

4

87668007

ARM

Straw Spreader

1шт.

5

1979989C1

BUSHING,19.13mm ID x 22.3mm OD x 15.7mm L

Idler Arm

2шт.

6

87647641

ROD

Spreader Belt Tensioner

1шт.

7

194652C1

PIVOT

Primary Drive

1шт.

8

1315197C1

SPACER

Spreader Drive

1шт.

9

1315223C1

SPRING

Spreader Drive

1шт.

10

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

1шт.

11

9706685

NUT,M12 x 1.75, Cl 8

2шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

10шт.

14

87668029

IDLER,73.64mm Idler Dia x 110.59mm OD x 20.78mm W

Flanged Idler

2шт.

15

100038

NUT,M12 x 1.75, Cl 8

2шт.

16

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

17

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

18

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

1шт.

19

87559515

PULLEY

Idler

1шт.

20

186736C3

ROD

Tailgate Lock

1шт.

21

540815R2

SPRING

1шт.

22

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

23

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

24

87639961

BRACKET

Spreader Drive Lever Stop

1шт.

25

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

4шт.

26

857-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 10.9

2шт.

27

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.
