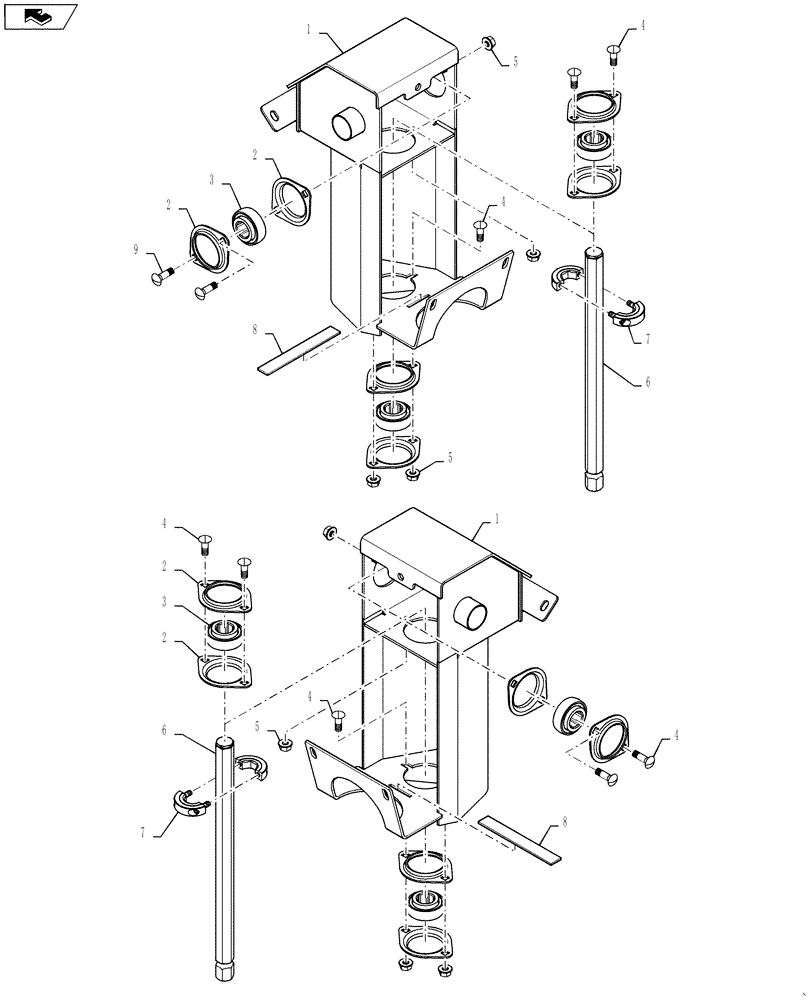

Запчасти Case IH 7130 (74.135.08[02]) - CHAFF SPREADER- DRIVES CONT (74) - CLEANING

1

87649415

BRACKET

RH

1шт.

87649413

BRACKET

LH

1шт.

2

86548974

FLANGE,Bearing

6шт.

3

87650438

BALL BEARING,22.25mm Hex x 52mm OD x 25.4mm W

3шт.

4

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

6шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

6

84426633

SHAFT

1шт.

7

84426645

CLAMP,Hex Shaft, 22.23mm ID

1шт.

8

278842A1

SEAL

1шт.

9

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

2шт.
