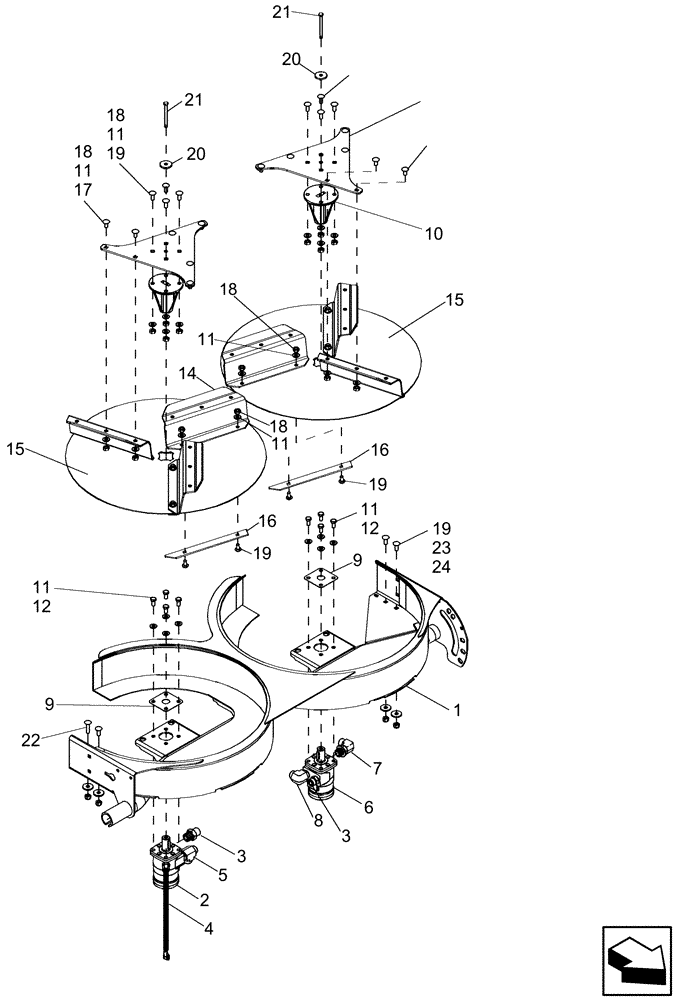

Запчасти Case IH 7130 (74.135.07[01]) - CHAFF SPREADER ASSEMBLY (74) - CLEANING

1

84130188

FRAME ASSY

Straw Spreader

1шт.

2

87519076

HYDRAULIC MOTOR,74CC

Straw Spreader Disc

1шт.

2

87519076R

REMAN-HYD MOTOR

5130, 6130, 7130 all (TIER 4) (1/12-)

1шт.

2

87519076C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

2шт.

4

87662556

SENSOR

Speed

1шт.

5

86579705

TEE,1"-14 ORFS x M22 x 1.5 ORB Run

1шт.

6

87519075

HYDRAULIC MOTOR,74CC

With Drain

1шт.

6

87519075R

REMAN-HYD MOTOR

5130, 6130, 7130 all COMBINE TIER 4 (1/12-)

1шт.

6

87519075C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

7

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

1шт.

8

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

9

87531172

PLATE

2шт.

10

87314540

HUB

Straw Spreader

2шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

40шт.

12

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

13

87709565

PLATE ASSY.

2шт.

14

87703195

FAN BLADE

BLADE

6шт.

15

87703180

DISC

Straw Spreader

2шт.

16

87703207

PLATE ASSY.

6шт.

18

100016

NUT,M10 x 1.5, Cl 8

32шт.

17

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

12шт.

19

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

23шт.

20

264198

WASHER,9.9mm ID x 39.1mm OD x 4.8mm Thk

2шт.

21

87302583

LOCK BOLT,M8 x 1.25 x 95.45mm, Cl 10.9

2шт.

22

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.

23

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

4шт.

24

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.
