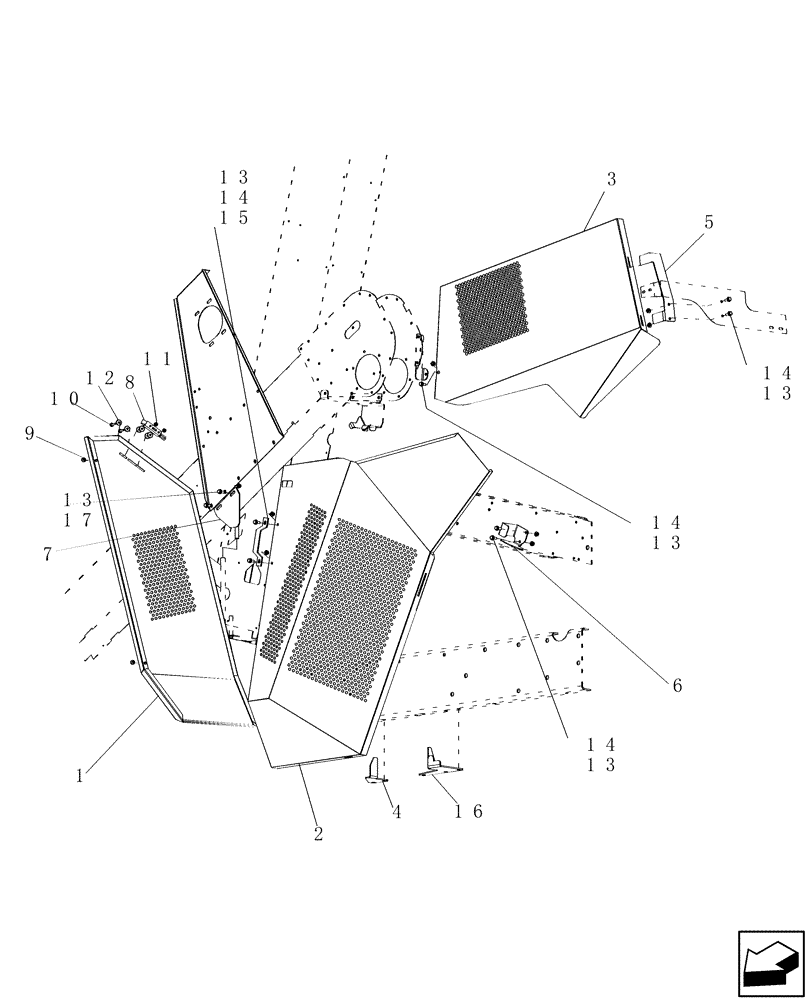

Запчасти Case IH 7130 (74.130.22) - SHIELDS, RIGHT HAND FAN DRIVE BELTS (74) - CLEANING

1

84128958

GUARD ASSY.

Right Hand

1шт.

2

84128953

SHIELD

Right Hand Fan Inlet

1шт.

3

84132266

SHIELD

Feeder Drive

1шт.

4

87474210

SUPPORT ASSY.

Right Hand Fan Shield

1шт.

5

87699674

SUPPORT ASSY.

Upper Shield, Front

1шт.

6

87475710

BRACKET

Right Hand Fan Inlet Shield

1шт.

7

87706143

BRACKET

Right Hand Door

1шт.

8

142588A1

LOCK

1шт.

96860C1

KNOB

Component Part Of Lock

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Nuts Used To Attach Knob To Lock

2шт.

9

1321640C1

GROMMET

Feeder Adapter

2шт.

10

87698832

FLANGE BOLT,Hex, M6 x 35mm, Cl 10.9

2шт.

11

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

12

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

6шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

7шт.

15

87735697

LATCH

Door Handle

1шт.

16

87482795

SUPPORT ASSY.

Right Hand Fan Shield

1шт.

17

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.
