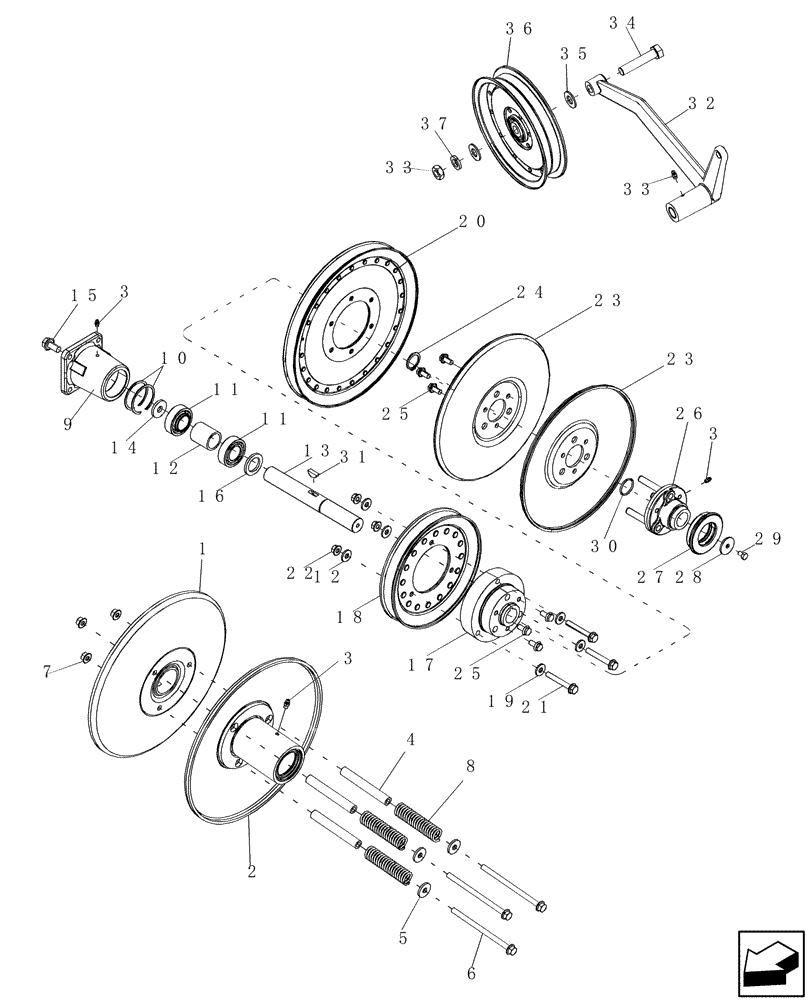

Запчасти Case IH 7130 (74.130.21) - PULLEY ASSEMBLY CLEANING FAN, CLEANING FAN DRIVE JACKSHAFT ASSEMBLY, IDLER ASSEMBLY FAN DRIVE WITH PULLEY (74) - CLEANING

1

87522943

PULLEY,285mm OD

Fan Driven Fixed

1шт.

2

1541552C2

PULLEY

Fan Driven Adjustable

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

4

1302180C2

BUSHING,8.2mm ID x 14.27mm OD x 101.6mm L

Fan Drive

3шт.

5

495-81117

WASHER,.344" x 1" x .120"

3шт.

6

87681208

BOLT,Hex, M8 X 130, Class 10.9

3шт.

7

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

8

1302181C2

SPRING

Fan Drive

3шт.

9

192418C1

HUB

Elevator And Fan Drive

1шт.

10

360936R1

RING

Separator Drive Shaft Bearing

2шт.

11

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

Self-Alligning Adapter

2шт.

12

152926C1

SPACER

Shapping Unit Drive Input Shaft,SPACER - 1-15/16 x 1-5/8 x 1-7/8 inch

1шт.

13

194853C3

SHAFT

Elevator And Fan Drive

1шт.

14

195-81030

WASHER

1шт.

15

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1шт.

16

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

Fan Bearing Retainer

1шт.

17

183333C1

HUB

Fixed Pulley

1шт.

18

193948C1

PULLEY,39.61mm W x 254mm OD

Cleaning System Drive

1шт.

19

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

6шт.

20

295918A1

PULLEY,355.6mm OD

Fan Jackshaft Driven

1шт.

21

87698841

BOLT,Hex, M10 x 70mm, Cl 10.9

3шт.

22

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

3шт.

23

301141A1

PULLEY

Fan Driver

2шт.

24

100-16125

SNAP RING,#125, Ext

1шт.

25

115745A1

FLANGE BOLT

6шт.

26

185286C91

HUB

Fan Driven Pulley

1шт.

27

168215C92

BALL BEARING,50.8mm ID x 92.84mm OD x 20.5mm W

1шт.

28

495-81122

WASHER,.344" x 1 1/2" x .120"

1шт.

29

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

30

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

31

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

32

87644280

ARM ASSY.

Fan Jackshaft Drive

1шт.

33

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

34

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

35

495-11066

WASHER,5/8", SAE

2шт.

36

177195C1

PULLEY ASSY.

Idler

1шт.

37

492-11062

BEARING WASHER,5/8"

1шт.

38

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.
