Запчасти Case IH 7130 (74.130.18) - MOTOR ASSEMBLY, CLEANING FAN SPEED ADJUSTER (74) - CLEANING

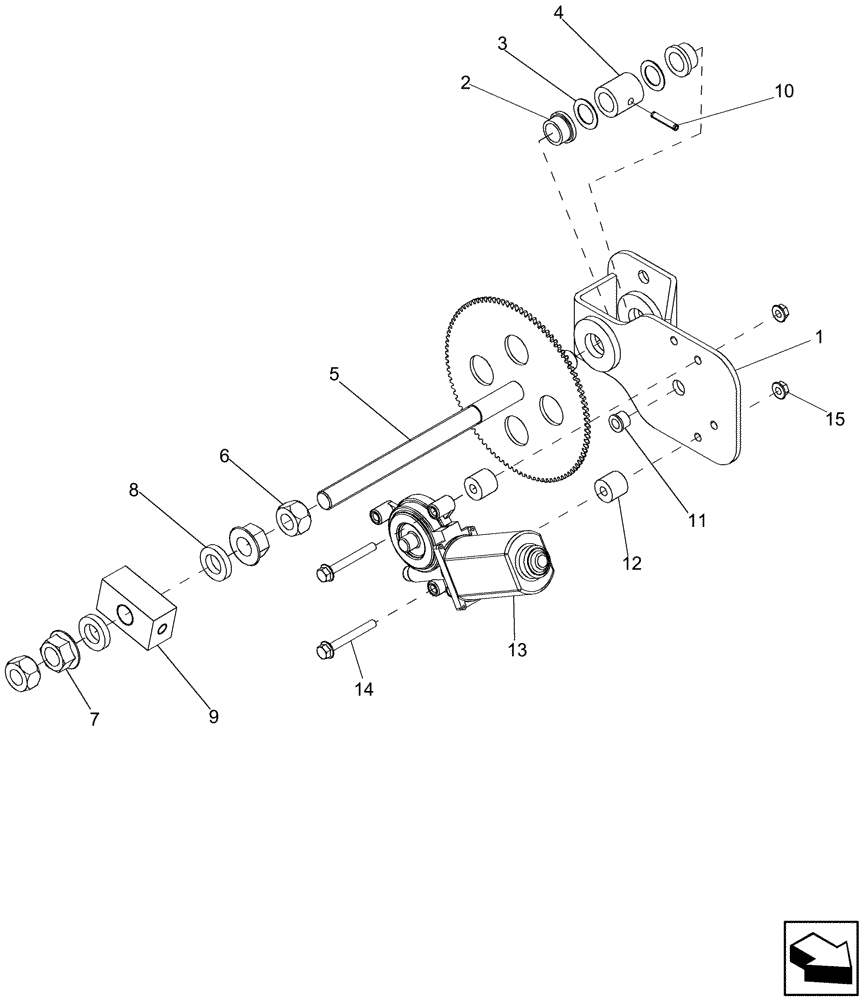

Схема запчастей Case IH 7130 - (74.130.18) - MOTOR ASSEMBLY, CLEANING FAN SPEED ADJUSTER (74) - CLEANING
11
6
14
10
5
7
13
15
4
2
12
9
3
1
8

Артикул

Название

Примечание

Количество

1

87647064

SUPPORT ASSY.

Fan Adjuster

1шт.

2

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

2шт.

3

495-81177

WASHER,21/32" x 1" x .030"

2шт.

4

87647066

SPACER,16.26mm ID x 25.4mm OD x 28mm L

1шт.

5

142848A1

GEAR

Fan Speed Adjuster

1шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

86521608

FLANGE NUT,Flg, 5/8"-11, G5

2шт.

8

87652042

WASHER,16.36mm ID x 28.5mm OD x 5.5mm Thk

2шт.

9

181206C1

BLOCK

1шт.

10

38-11216

LOCK PIN,3/16" x 1", Slotted

1шт.

11

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

1шт.

12

113485A1

SPACER

Fan And Rotor Speed Motor

2шт.

13

87693674

ELECTRIC MOTOR

Fan And Rotor Speed

1шт.

14

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

2шт.

15

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

Выбрано товаров: 15
