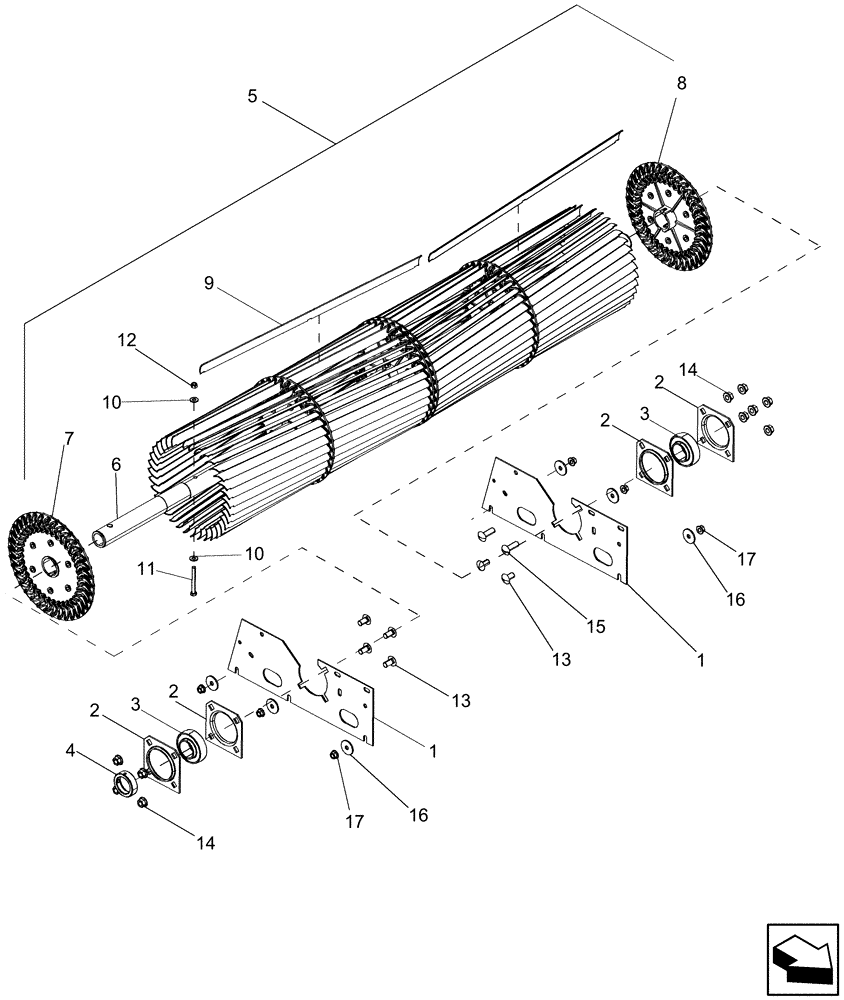

Запчасти Case IH 7130 (74.130.03) - CLEANING FAN ASSEMBLY (74) - CLEANING

1

87735825

SUPPORT

Fan Bearing

2шт.

2

86979948

FLANGE

Bearing

4шт.

3

668719R92

BEARING ASSY,1.7505" ID x 3.346" OD x 1.1875" Thk

2шт.

4

86999734

COLLAR,44.48mm ID x 63.5mm OD x 18.3mm W

Lock

1шт.

5

1541936C3

FAN

Cleaning, Incl 6 - 12

1шт.

6

1989543C3

SHAFT

Cleaning Fan

1шт.

7

1541570C1

FAN BLADE

Fan, Right Hand

3шт.

8

1541560C1

FAN BLADE

Fan, Left Hand

3шт.

9

1347001C1

FAN BLADE

Crossflow Fan

72шт.

10

495-11034

WASHER,5/16", SAE

12шт.

11

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

6шт.

12

230-4115

LOCK NUT,5/16"-18, GA

6шт.

13

9503839

CARRIAGE BOLT,Short NK, M12 x 25, Cl8.8, Full Thd

6шт.

14

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

15

87698852

CARRIAGE BOLT,M12 x 40mm, Cl 10.9

2шт.

16

495-81143

WASHER,13/32" x 1 1/2" x .120"

6шт.

17

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.
