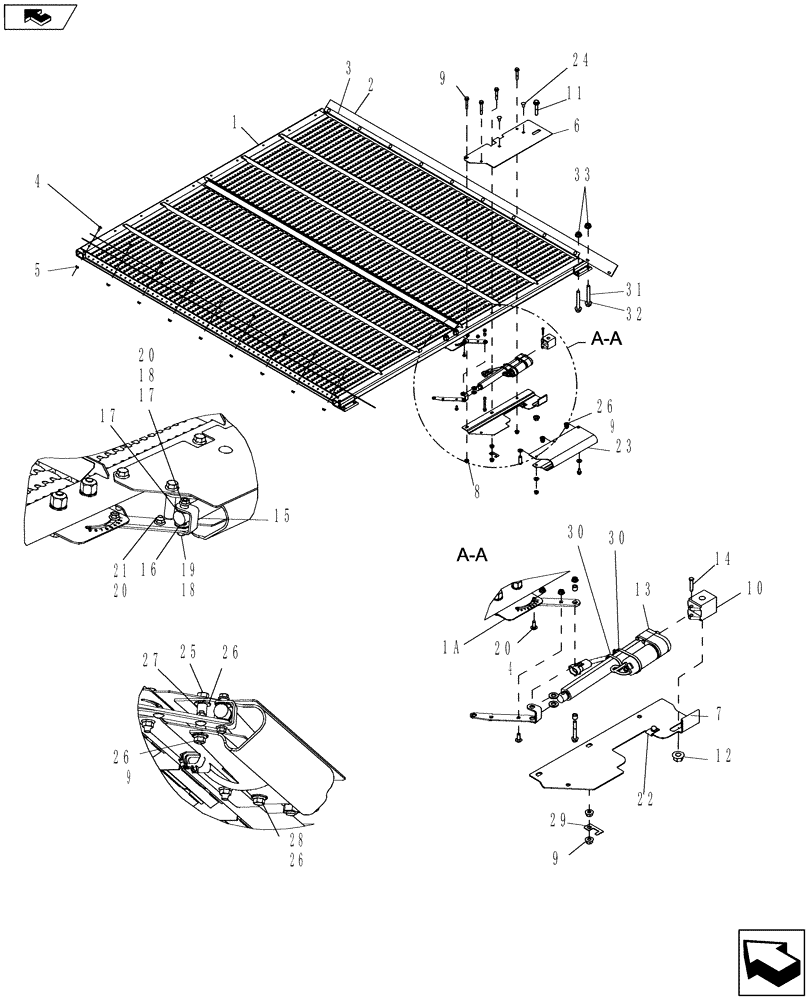

Запчасти Case IH 7130 (74.118.11[01]) - SIEVE ASSEMBLY, LOWER REMOTE (74) - CLEANING

1

87712275

SIEVE,Lower Closz 1-1/8", 60.20" x 65.96"

Lower, 1-1/8 Closz

1шт.

1a

84269986

HANDLE

1шт.

1

87712276

SIEVE,Lower Closz 1-5/8", 60.20" x 64.96"

Lower, 1-5/8 Closz

1шт.

1a

84269987

HANDLE

1шт.

2

198925A1

SEAL,56mm W x 1790mm L

Shoe Sieve

2шт.

3

87712566

BAR

Lower Sieve

2шт.

4

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

18шт.

5

86050300

FLANGE NUT,M6 x 1.0, Cl 10

18шт.

6

87705848

SHIELD

Actuator Mounting Top

1шт.

7

87705850

SHIELD

Actuator Mounting Bottom

1шт.

8

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

3шт.

9

87681210

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

10

87705852

BLOCK

Actuator Sieve

1шт.

11

87301277

BOLT,M12 x 71.8mm, Cl 10.9

1шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

13

87347281

ACTUATOR

1шт.

13

84335407R

REMAN-ELECTRIC MOTOR

1шт.

13

84335407C

CORE-ELECTRIC MOTOR

Return Number

1шт.

14

376876

CLEVIS PIN,6mm OD x 30mm L

1шт.

15

87705855

STRAP

Sieve Actuator

1шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

17

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

18

87682401

SPACER,6.83mm ID x 10.29mm OD x 9mm L

2шт.

19

844-6045

BOLT,Hvy Hex, M6 x 45mm, Cl 8.8

1шт.

20

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

2шт.

21

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

1шт.

22

86508354

PUSH-ON NUT,M8 x 1.25

1шт.

23

87705853

COVER

Actuator Sieve

1шт.

24

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

1шт.

25

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

26

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

5шт.

27

87698776

SPACER,8.48mm ID x 12.7mm OD x 36.5mm L

1шт.

28

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

29

87013667

CLIP

1шт.

30

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.

31

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

32

827-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 10.9

2шт.

33

86512554

NUT,M10 x 1.5, Cl 10

4шт.
