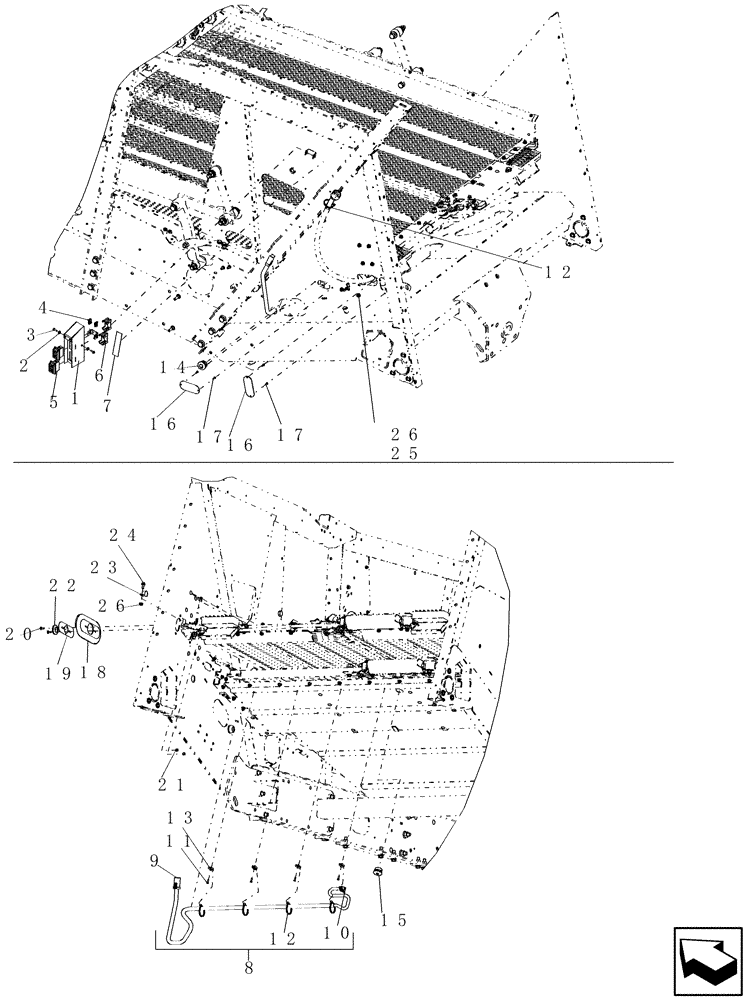

Запчасти Case IH 7130 (74.114.11) - REMOTE SIEVE ADJUSTMENT (74) - CLEANING

1

87011997

HOUSING

1шт.

2

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

4

86014250

SPRING NUT,M6 x 1.0

2шт.

5

86627351

SWITCH, SIEVE ADJUST

Remote Adjust

2шт.

6

86627352

CLAMP

Switch

2шт.

7

87036589

DECAL

Remote Adjustment Switch

1шт.

8

87580679

WIRE HARNESS

Shoe Sieve Control, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Main Sieve Harness, C055, 6 - Pin

1шт.

10

NSS

NOT SOLD SEPARAT

Shoe Sieve Motor, C274, 5 - Pin

1шт.

11

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

12

86566989

CABLE TIE,208mm L

CABLE STRAP

5шт.

13

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

4шт.

14

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

15

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.

16

87389797

COVER

2шт.

17

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

18

84127513

SEAL

Cleaning System

1шт.

19

87495389

COVER ASSY

2шт.

20

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

21

832-10406

NUT,M6 x 1, Cl 8

2шт.

22

248-1123

GROMMET,1" ID x 1 3/4" x .062"

1шт.

23

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

24

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

25

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

7шт.

26

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.
