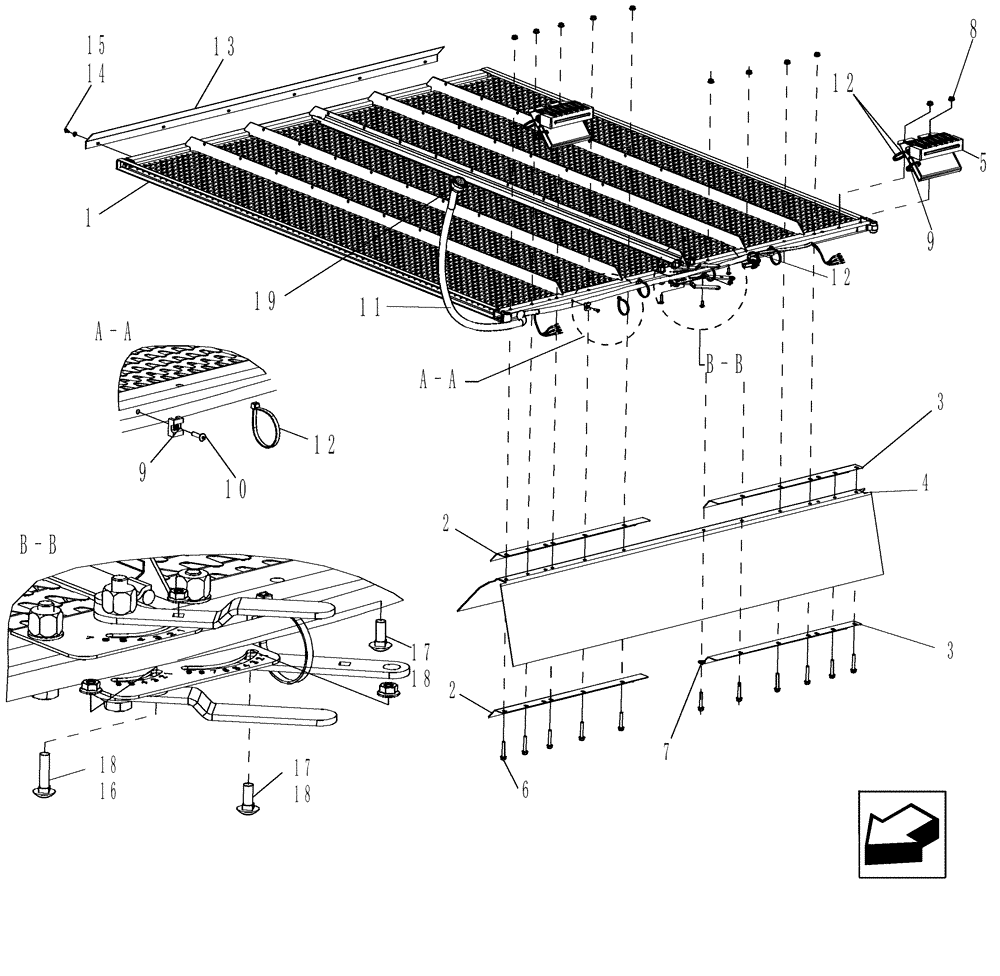

Запчасти Case IH 7130 (74.114.09[01]) - SIEVE ASSEMBLY, UPPER MANUAL (74) - CLEANING

1

87710707

SIEVE,Upper Peterson 1-1/8", 60" x 75.24""

Upper Peterson

1шт.

1

87710709

SIEVE,Upper Closz 1 - 5/8, 60" x 75.24"

Upper 1-5/8 Closz

1шт.

1

87710706

SIEVE,Upper Corn, 1-5/8", 60" x 75.24"

Upper 1-5/8 Corn

1шт.

1

87710708

SIEVE,Closz 1-1/8", 60" x 75.24"

Upper 1-1/8 Closz

1шт.

2

87711031

ANGLE

Chaffer Seal, Left Hand

2шт.

3

87711033

ANGLE

Chaffer Seal, Right Hand

2шт.

4

87732448

CANVAS,1565mm L

Chaffer

1шт.

5

245361C2

TRANSMITTER

Grain Scan Chaffer Sensor Assembly

2шт.

6

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

11шт.

7

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

1шт.

8

87681210

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

6шт.

10

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

11

87489861

WIRE HARNESS

Sieve

1шт.

12

86566989

CABLE TIE,208mm L

CABLE STRAP

9шт.

13

120001A1

DEFLECTOR

Sieve, Upper Peterson

1шт.

14

495-31022

WASHER,#10

Sieve, Upper Peterson

6шт.

15

281-5458

SELF-TAP SCREW,Hex Washer, 0.19" - 24 x 1/2"

Sieve, Upper Peterson

6шт.

16

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

1шт.

17

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

18

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

3шт.

19

87382926

WIRE CONNECTOR,Female, 14 Cavities

Connector

1шт.
