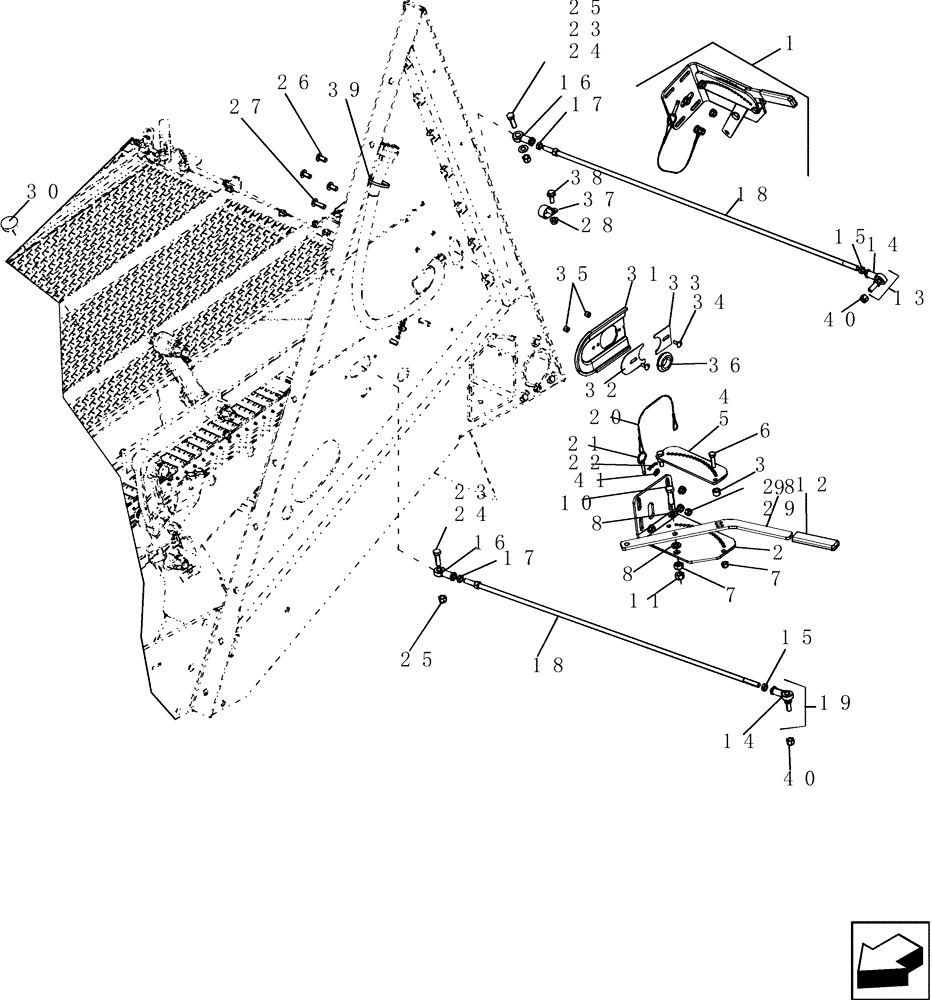

Запчасти Case IH 7130 (74.114.02) - SIEVE ADJUSTMENT (74) - CLEANING

1

87605671

ADJUSTER

Adjustment Assembly, Incl 2 - 12

2шт.

2

87605670

BRACKET

Sieve Adjust

1шт.

3

416491A2

SPACER

Tube

2шт.

4

399763A2

PLATE

Indicator, Sieve Location

1шт.

5

87571576

DECAL

Sieve Adjustment

1шт.

6

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

9

399778A2

ADJUSTABLE SIEVE

Sieve Adjustment

1шт.

10

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

11

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

12

433741A1

GRIP

Sieve Adjust

1шт.

13

442374A1

TIE-ROD

Chaffer Sieve Adjust, Incl 14 - 18

1шт.

14

403123A1

BALL JOINT,3/8" - 24

1шт.

15

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

1шт.

16

427179A1

BALL JOINT HEAD,3/8" - 24

1шт.

17

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

18

407139A2

ADJUSTMENT ROD

Chaffer Sieve

1шт.

18

407140A2

ADJUSTMENT ROD

Shoe Sieve

1шт.

19

84129225

ROD

Lower Sieve Adjust, Incl 14 - 18

1шт.

20

427336A1

CABLE,457.2mm L

2шт.

21

87453256

PIN,6.35mm OD

Quick Release

2шт.

22

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

2шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

25

9637692

NUT,3/8"-16, Gr B

2шт.

26

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

6шт.

27

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

2шт.

28

86507066

FLANGE NUT,M8 x 1.25, Cl 10

9шт.

29

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

30

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

31

84127513

SEAL

Cleaning System

1шт.

32

87495389

COVER ASSY

1шт.

33

84127574

PLATE

1шт.

34

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

35

832-10406

NUT,M6 x 1, Cl 8

2шт.

36

248-1123

GROMMET,1" ID x 1 3/4" x .062"

1шт.

37

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

38

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

39

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

40

80855

NUT,Hex, 3/8" - 24

2шт.

41

131-440

PUSH-ON NUT

8шт.
